Wago 750-511 2Pwm, 24 Vdc 0.1A

Why Choose the WAGO 750-511 Pulse Width Output Module?

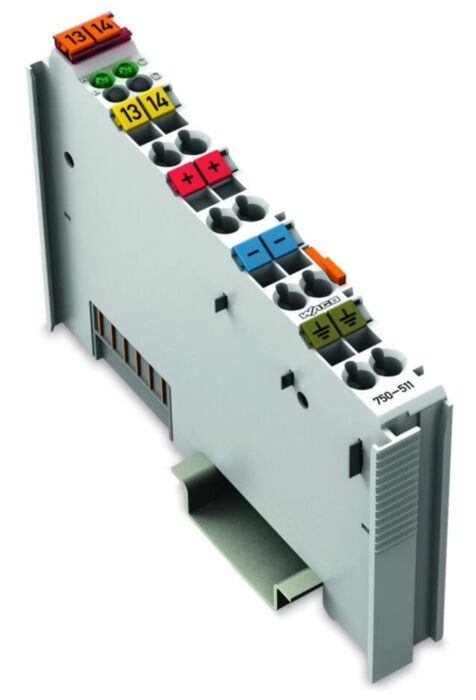

The WAGO 750-511 is a specialised 2-channel pulse width output (PWM) module designed for the WAGO I/O System 750. It converts digital control values from a PLC or controller into pulse width modulated 24 V DC output signals, enabling precise control of actuators, motors, valves and lighting systems in industrial automation environments.

Each channel provides PWM output with a configurable duty cycle, allowing accurate modulation of devices such as DC motor speed controllers, proportional valves and dimmable lighting systems. The module supports a pulse frequency of approximately 250 Hz with a duty cycle range from 0 to 100 %. :contentReference

The module integrates seamlessly with WAGO fieldbus couplers and programmable controllers within the WAGO 750 modular I/O architecture. Its compact DIN-rail housing and CAGE CLAMP® spring terminal technology allow fast installation and reliable wiring within industrial control cabinets.

Key Advantages

• 2 pulse width output channels for precise actuator control.
• 24 V DC PWM outputs for speed, position or intensity control.
• Duty cycle adjustable from 0–100% for accurate modulation.
• Short-circuit protected outputs for improved reliability.
• Seamless integration with WAGO 750 Series distributed I/O systems.
• Compact design with CAGE CLAMP® spring terminals for quick installation.

Key Features

• 2 PWM output channels.
• Output voltage: 24 V DC.
• Maximum output current: 0.1 A per channel.
• Pulse frequency: approx. 250 Hz.
• Duty cycle range: 0 to 100 %.
• Resolution: 10-bit PWM control.
• Short-circuit protection integrated.
• Status LEDs indicate module operation.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-511
• Module type: Pulse width output module (PWM)
• Number of outputs: 2 channels
• Output voltage: 24 V DC
• Output current: 0.1 A per channel
• Pulse frequency: approx. 250 Hz
• Duty cycle: 0 – 100 %
• Resolution: 10-bit PWM
• Data width: 2 × 16-bit output values
• Isolation: 500 V system/field isolation
• System supply voltage: 5 V DC via internal I/O bus
• Field supply voltage: 24 V DC (−15% to +20%)
• Connection technology: CAGE CLAMP® spring terminals
• Mounting: 35 mm DIN rail
• Module width: approx. 12 mm
• Operating temperature: 0 °C to +55 °C
• Ingress protection: IP20

Industrial PWM Control

Pulse width modulation (PWM) is widely used in industrial automation to control analogue-like behaviour using digital outputs. By adjusting the duty cycle of the signal, controllers can regulate speed, position or intensity in actuators and electronic devices.

The WAGO 750-511 allows PLC systems to generate PWM signals directly from the distributed I/O system. This enables precise control of devices such as DC motors, proportional valves, heating elements and dimmable lighting systems without requiring separate analogue control hardware. :contentReference

Typical Applications

• DC motor speed control.
• Proportional valve positioning.
• Industrial lighting dimming control.
• Actuator modulation in machine automation.
• Process automation requiring PWM control signals.

Trusted by Automation Engineers

WAGO 750 Series I/O modules are widely used by automation engineers and system integrators to build reliable distributed control systems across manufacturing, infrastructure and process automation industries.
