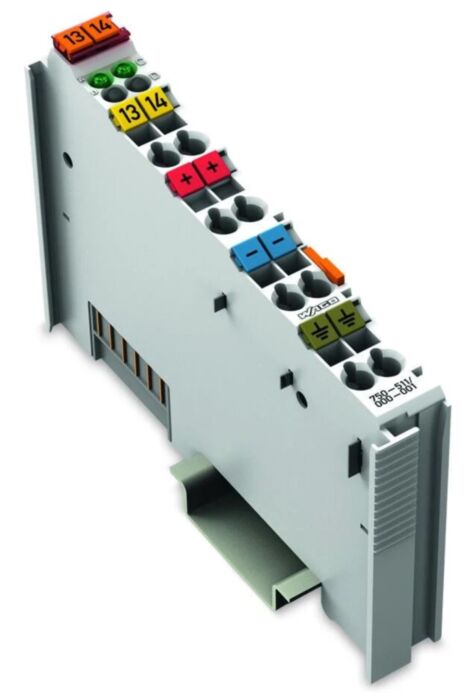

Wago 750-511/000-001 2Pwm, 24 Vdc 0.1A

Why Choose the WAGO 750-511/000-001 PWM Output Module?

The WAGO 750-511/000-001 is a precision 2-channel pulse width modulation (PWM) output module designed for the WAGO I/O System 750. It converts digital control values from a PLC or automation controller into pulse width modulated 24 V DC output signals, enabling accurate control of actuators, motors and proportional devices in industrial automation systems.

Each output channel produces a configurable PWM signal that allows precise adjustment of the duty cycle between 0 % and 100 %. This enables reliable control of devices such as DC motors, proportional valves, heating elements and dimmable lighting systems, making the module ideal for applications requiring variable control signals.

The module integrates seamlessly with WAGO fieldbus couplers and programmable controllers within the WAGO 750 distributed I/O architecture. Its compact DIN-rail housing and CAGE CLAMP® spring terminal technology provide fast installation and secure wiring within industrial control cabinets.

Key Advantages

• 2 PWM output channels for precise actuator control.
• 24 V DC pulse width modulation outputs.
• Duty cycle adjustable from 0–100% for accurate control.
• Suitable for controlling motors, valves and electronic loads.
• Short-circuit protected outputs for improved reliability.
• Seamless integration with WAGO 750 Series distributed I/O systems.

Key Features

• 2 PWM output channels.
• Output voltage: 24 V DC.
• Pulse frequency: approx. 250 Hz.
• Duty cycle: 0–100 % configurable.
• Resolution: 10-bit PWM control.
• Short-circuit protection integrated.
• Status LEDs for channel monitoring.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-511/000-001
• Module type: Pulse width modulation output module
• Number of outputs: 2 PWM channels
• Output voltage: 24 V DC
• Output current: approx. 0.1 A per channel
• PWM frequency: approx. 250 Hz
• Duty cycle: 0 – 100 %
• Resolution: 10-bit
• Data width: 2 × 16-bit output values
• Isolation: 500 V system/field isolation
• System supply voltage: 5 V DC via internal I/O bus
• Field supply voltage: 24 V DC
• Connection technology: CAGE CLAMP® spring terminals
• Mounting: 35 mm DIN rail
• Module width: approx. 12 mm
• Operating temperature: 0 °C to +55 °C
• Ingress protection: IP20

Industrial PWM Control

Pulse width modulation (PWM) is widely used in industrial automation to control analogue-like behaviour using digital outputs. By varying the duty cycle of the output signal, automation controllers can precisely regulate the speed, position or intensity of connected devices.

The WAGO 750-511/000-001 allows PLC systems to generate PWM signals directly from distributed I/O hardware. This eliminates the need for separate analogue control modules and provides a compact and efficient solution for applications requiring adjustable output signals.

Typical Applications

• DC motor speed control.
• Proportional valve actuation.
• Industrial lighting dimming systems.
• Heating element control.
• Automation systems requiring PWM output control.

Trusted by Automation Engineers

WAGO 750 Series I/O modules are widely used by automation engineers and system integrators to build reliable distributed control systems across manufacturing, infrastructure and process automation environments.
