Wago 750-506 2Do, 24 Vdc 0.5A Diagn

Why Choose the WAGO 750-506 Digital Output Module?

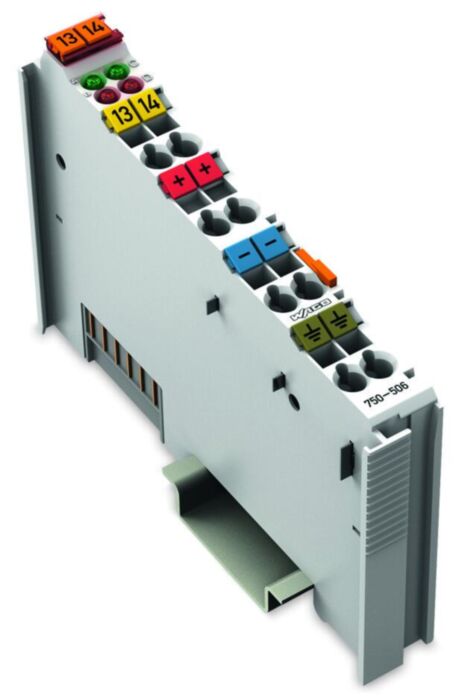

The WAGO 750-506 is a high-performance 4-channel digital output module designed for the WAGO I/O System 750. It allows PLCs and industrial controllers to reliably control field devices such as relays, contactors, solenoid valves and indicator lamps within distributed automation systems.

Each output channel provides 24 V DC high-side switching with a maximum output current of 2 A per channel. This enables the module to drive higher-power loads commonly used in industrial machinery, process automation equipment and control panels.

The module integrates seamlessly with WAGO fieldbus couplers and programmable controllers, forming part of the flexible WAGO 750 distributed I/O platform. Its compact DIN rail housing and CAGE CLAMP® spring terminal technology allow fast installation and secure wiring inside industrial control cabinets.

Key Advantages

• 4 digital output channels for industrial control applications.
• 24 V DC switching outputs rated up to 2 A per channel.
• High-side switching outputs suitable for industrial loads.
• Short-circuit protection integrated for improved reliability.
• Seamless integration with WAGO 750 Series distributed I/O systems.
• Quick installation using CAGE CLAMP® spring terminals.

Key Features

• 4 digital output channels.
• Output type: 24 V DC high-side switching.
• Maximum output current: 2 A per channel.
• Integrated short-circuit protection.
• Status LEDs indicate switching state.
• Compact DIN rail module for control cabinet installations.
• Compatible with WAGO fieldbus couplers and controllers.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-506
• Module type: Digital output module
• Number of outputs: 4 digital channels
• Output voltage: 24 V DC
• Maximum output current: 2 A per channel
• Output characteristic: High-side switching
• Isolation: 500 V system/field isolation
• System supply voltage: 5 V DC via internal I/O bus
• Field supply voltage: 24 V DC (−25 % to +30 %)
• Connection technology: CAGE CLAMP® spring terminals
• Mounting: 35 mm DIN rail
• Module width: approx. 12 mm
• Operating temperature: 0 °C to +55 °C
• Ingress protection: IP20

Industrial Digital Output Control

Digital output modules act as the interface between PLC logic and field devices. They convert control signals from the automation controller into switching outputs that operate relays, valves, lamps and other actuators throughout industrial automation systems.

The WAGO 750-506 provides reliable switching capability for higher-power loads while maintaining seamless integration with the WAGO 750 Series distributed I/O platform. This enables engineers to design scalable automation systems, machine control networks and distributed I/O architectures.

Typical Applications

• PLC control of relays and contactors.
• Solenoid valve and actuator switching.
• Machine automation and equipment control.
• Status indicators and signalling devices.
• Distributed PLC and remote I/O architectures.

Trusted by Automation Engineers

WAGO 750 Series I/O modules are trusted worldwide by automation engineers and machine builders for building reliable distributed control systems across manufacturing, infrastructure and industrial automation environments.
