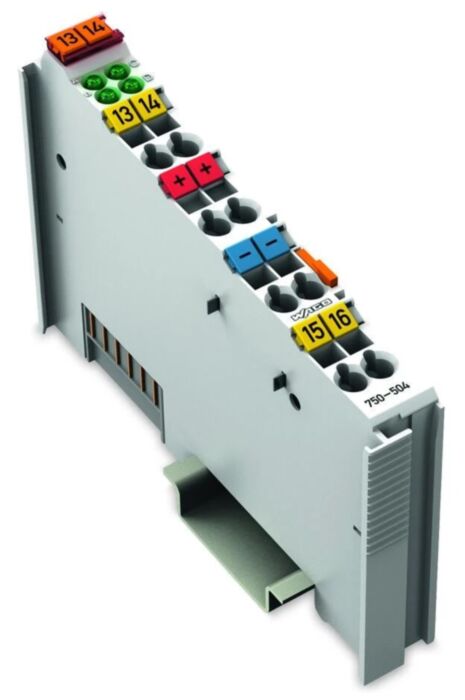

Wago 750-504 4Do, 24 Vdc 0.5A

Why Choose the WAGO 750-504 Digital Output Module?

The WAGO 750-504 is a reliable 4-channel digital output module designed for the WAGO I/O System 750. It allows PLCs and industrial controllers to switch field devices such as relays, contactors, indicator lights and solenoid valves within distributed automation systems.

Each channel provides 24 V DC high-side switching with a maximum output current of 0.5 A per channel. This makes the module ideal for controlling signalling devices and low-power actuators in machine automation and industrial control panels.

The module integrates seamlessly with WAGO fieldbus couplers and programmable controllers, forming part of the flexible WAGO 750 modular I/O platform. Its compact DIN-rail design and CAGE CLAMP® spring terminal connections ensure quick installation and secure wiring within control cabinets.

Key Advantages

• 4 digital output channels for industrial control applications.
• 24 V DC switching outputs with up to 0.5 A per channel.
• High-side switching outputs for industrial control circuits.
• Short-circuit protected channels for reliable operation.
• Seamless integration with WAGO 750 Series distributed I/O systems.
• Fast wiring using CAGE CLAMP® spring terminals.

Key Features

• 4 digital output channels.
• Output type: 24 V DC high-side switching.
• Maximum output current: 0.5 A per channel.
• Short-circuit protection integrated.
• Status LEDs indicate switching state.
• Compact DIN rail module for control cabinet installations.
• Compatible with WAGO fieldbus couplers and controllers.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-504
• Module type: Digital output module
• Number of outputs: 4 digital channels
• Output voltage: 24 V DC
• Maximum output current: 0.5 A per channel
• Output characteristic: High-side switching
• Isolation: 500 V system/field isolation
• System supply voltage: 5 V DC via internal I/O bus
• Field supply voltage: 24 V DC (−25 % to +30 %)
• Connection technology: CAGE CLAMP® spring terminals
• Mounting: 35 mm DIN rail
• Module width: approx. 12 mm
• Operating temperature: 0 °C to +55 °C
• Ingress protection: IP20

Industrial Digital Output Control

Digital output modules act as the interface between PLC logic and field devices. They convert controller signals into switching outputs that operate relays, lamps, contactors, valves and other actuators used throughout industrial automation systems.

The WAGO 750-504 provides reliable switching control while maintaining seamless integration with the WAGO 750 Series distributed I/O platform. This enables engineers to build scalable machine automation systems, distributed control networks and remote I/O installations.

Typical Applications

• PLC control of relays and contactors.
• Indicator lights and signalling devices.
• Solenoid valve switching.
• Machine automation and control systems.
• Distributed PLC and remote I/O architectures.

Trusted by Automation Engineers

WAGO 750 Series I/O modules are trusted worldwide by automation engineers and machine builders for creating reliable distributed control systems across manufacturing, infrastructure and industrial automation environments.
