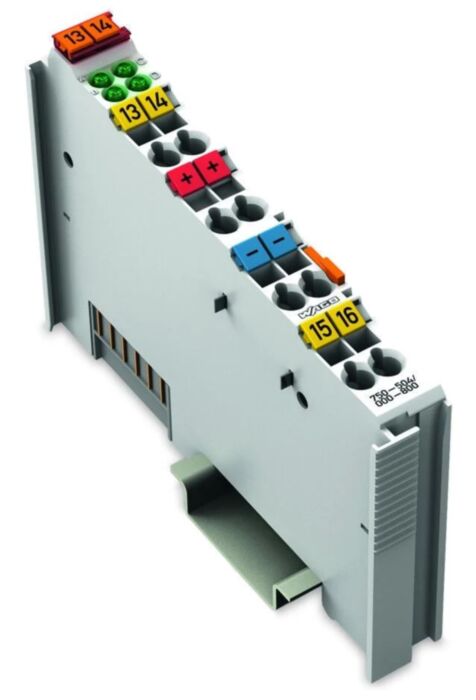

Wago 750-504/000-800 4Do, 24 Vdc 0.5A If

Why Choose the WAGO 750-504/000-800 Digital Output Module?

The WAGO 750-504/000-800 is a dependable 4-channel digital output module designed for the WAGO I/O System 750. It enables PLCs and industrial controllers to reliably switch field devices such as relays, indicator lamps, solenoid valves and contactors within distributed automation systems.

Each output channel provides 24 V DC high-side switching with a maximum load current of 0.5 A per channel. This allows the module to control common industrial signalling devices and low-power actuators used throughout machine automation and industrial process installations.

The module integrates seamlessly with WAGO fieldbus couplers and programmable controllers, forming part of the flexible WAGO 750 modular I/O architecture. Its compact DIN rail design and CAGE CLAMP® spring terminal connections allow fast installation and secure wiring within industrial control cabinets.

Key Advantages

• 4 digital output channels for industrial control applications.
• 24 V DC switching outputs rated up to 0.5 A per channel.
• High-side switching outputs suitable for industrial control circuits.
• Short-circuit protected outputs for improved reliability.
• Seamless integration with WAGO 750 Series distributed I/O systems.
• Fast installation using CAGE CLAMP® spring terminals.

Key Features

• 4 digital output channels.
• Output type: 24 V DC high-side switching.
• Maximum output current: 0.5 A per channel.
• Integrated short-circuit protection.
• Status LEDs for output monitoring.
• Compact DIN rail module for control cabinet installations.
• Compatible with WAGO fieldbus couplers and controllers.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-504/000-800
• Module type: Digital output module
• Number of outputs: 4 digital channels
• Output voltage: 24 V DC
• Maximum output current: 0.5 A per channel
• Output characteristic: High-side switching
• Isolation: 500 V system/field isolation
• System supply voltage: 5 V DC via internal I/O bus
• Field supply voltage: 24 V DC (−25 % to +30 %)
• Connection technology: CAGE CLAMP® spring terminals
• Mounting: 35 mm DIN rail
• Module width: approx. 12 mm
• Operating temperature: 0 °C to +55 °C
• Ingress protection: IP20

Industrial Digital Output Control

Digital output modules provide the interface between PLC control logic and physical field devices. They convert controller signals into switching outputs that operate relays, lamps, valves and other actuators used throughout industrial automation systems.

The WAGO 750-504/000-800 provides reliable switching control while maintaining seamless integration within the WAGO 750 Series distributed I/O platform. This enables engineers to design scalable machine automation systems, remote I/O architectures and distributed industrial control networks.

Typical Applications

• PLC control of relays and contactors.
• Indicator lights and signalling devices.
• Solenoid valve switching.
• Machine automation and industrial control systems.
• Distributed PLC and remote I/O architectures.
