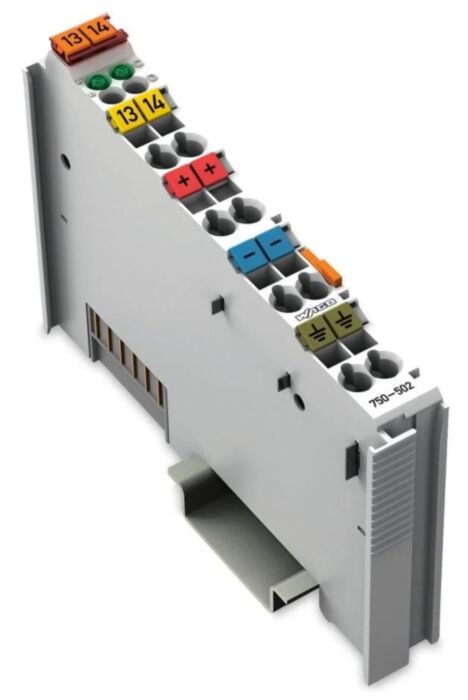

Wago 750-502 2Do, 24 Vdc 2A

Why Choose the WAGO 750-502 Digital Output Module?

The WAGO 750-502 is a powerful 2-channel digital output module designed for the WAGO I/O System 750. It allows PLCs and industrial controllers to transmit switching commands to field devices such as relays, solenoids, valves and indicator lamps within industrial automation systems.

Each output channel provides 24 V DC high-side switching with a maximum load current of 2 A per channel, making the module suitable for driving higher-power actuators and industrial loads. The outputs are electronically protected against short circuits, ensuring reliable and safe operation in demanding environments. :contentReference

The module integrates seamlessly with WAGO fieldbus couplers and programmable controllers to form flexible distributed automation architectures. Its compact DIN-rail housing and CAGE CLAMP® spring terminal technology allow fast wiring and secure electrical connections inside control cabinets.

Key Advantages

• 2 digital output channels for actuator and device control.
• 24 V DC outputs with up to 2 A switching current.
• High-side switching design for industrial control circuits.
• Short-circuit protected outputs for improved system reliability.
• Seamless integration with WAGO 750 Series distributed I/O systems.
• Quick installation using CAGE CLAMP® spring terminals.

Key Features

• 2 digital output channels.
• Output type: 24 V DC high-side switching.
• Maximum output current: 2 A per channel.
• Switching frequency: up to 2.5 kHz.
• Short-circuit protection integrated.
• Status LEDs indicate output activity.
• Compatible with WAGO fieldbus couplers and controllers.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-502
• Module type: Digital output module
• Number of outputs: 2 digital channels
• Signal type: 24 V DC switching
• Output characteristic: High-side switching
• Maximum output current: 2 A per channel
• Maximum switching frequency: 2.5 kHz
• Load types: Resistive, inductive and lamp loads
• Isolation: 500 V system/field isolation
• System supply voltage: 5 V DC via internal I/O bus
• Field supply voltage: 24 V DC (−25 % to +30 %)
• Connection technology: CAGE CLAMP® spring terminals
• Mounting: 35 mm DIN rail
• Module width: approx. 12 mm
• Operating temperature: 0 °C to +55 °C
• Ingress protection: IP20

Industrial Digital Output Control

Digital output modules form the interface between PLC control logic and physical field devices. These modules convert controller signals into switching outputs that operate industrial equipment such as solenoid valves, contactors, signalling lights and other actuators.

The WAGO 750-502 provides robust switching capability for higher-power devices while maintaining reliable integration within the WAGO 750 Series distributed I/O platform. This enables engineers to build scalable machine control systems, process automation architectures and remote I/O installations.

Typical Applications

• PLC control of relays and contactors.
• Solenoid valve and actuator control.
• Machine automation and equipment control.
• Status indicators and signalling devices.
• Distributed PLC and remote I/O architectures.

Trusted by Automation Engineers

WAGO 750 Series I/O modules are trusted worldwide by automation engineers and machine builders for building reliable distributed control systems across manufacturing, infrastructure and industrial automation environments.
