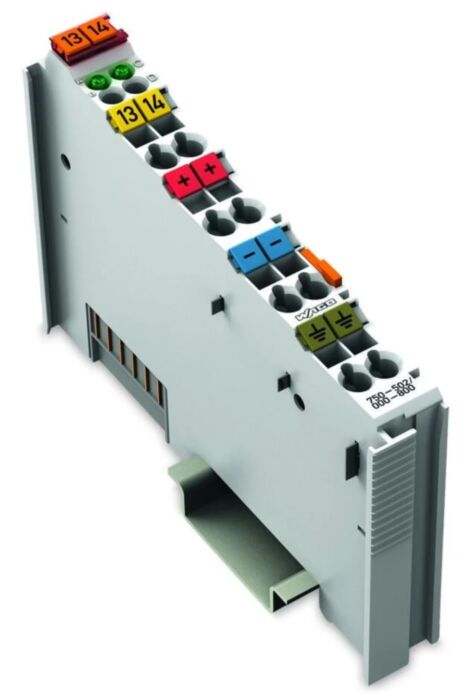

Wago 750-502/000-800 2Do, 24 Vdc 2A If

Why Choose the WAGO 750-502/000-800 Digital Output Module?

The WAGO 750-502/000-800 is a robust 2-channel digital output module designed for the WAGO I/O System 750. It enables PLCs and industrial controllers to reliably switch field devices such as relays, contactors, valves and signalling lamps within distributed automation systems.

Each output channel provides 24 V DC high-side switching with a maximum load current of 2 A per channel. This makes the module suitable for driving higher-power actuators and industrial loads while maintaining stable switching performance in machine automation and process control environments.

The module integrates seamlessly with WAGO fieldbus couplers and programmable controllers, forming part of the flexible WAGO 750 modular I/O architecture. Its compact DIN-rail design and CAGE CLAMP® spring terminal connections allow fast installation and secure wiring inside industrial control cabinets.

Key Advantages

• 2 digital output channels for actuator and device control.
• 24 V DC switching outputs rated up to 2 A.
• High-side switching design for industrial control circuits.
• Short-circuit protected outputs for improved reliability.
• Seamless integration with WAGO 750 Series distributed I/O systems.
• Quick installation using CAGE CLAMP® spring terminals.

Key Features

• 2 digital output channels.
• Output type: 24 V DC high-side switching.
• Maximum output current: 2 A per channel.
• Short-circuit protection integrated.
• Status LEDs indicate switching status.
• Compact DIN rail module for control cabinet installations.
• Compatible with WAGO fieldbus couplers and controllers.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-502/000-800
• Module type: Digital output module
• Number of outputs: 2 digital channels
• Output voltage: 24 V DC
• Maximum output current: 2 A per channel
• Output characteristic: High-side switching
• Isolation: 500 V system/field isolation
• System supply voltage: 5 V DC via internal I/O bus
• Field supply voltage: 24 V DC (−25 % to +30 %)
• Connection technology: CAGE CLAMP® spring terminals
• Mounting: 35 mm DIN rail
• Module width: approx. 12 mm
• Operating temperature: 0 °C to +55 °C
• Ingress protection: IP20

Industrial Digital Output Control

Digital output modules form the interface between PLC logic and physical field devices. These modules convert controller commands into switching signals that operate actuators, contactors, valves and signalling equipment throughout industrial automation systems.

The WAGO 750-502/000-800 provides robust switching capability for higher-power devices while maintaining reliable integration within the WAGO 750 Series distributed I/O platform. This enables engineers to build scalable machine automation architectures and distributed control systems.

Typical Applications

• PLC control of relays and contactors.
• Solenoid valve and actuator switching.
• Industrial machine automation.
• Status indicators and signalling devices.
• Distributed PLC and remote I/O architectures.

Trusted by Automation Engineers

WAGO 750 Series I/O modules are trusted worldwide by automation engineers and machine builders for building reliable distributed control systems across manufacturing, infrastructure and industrial automation environments.
