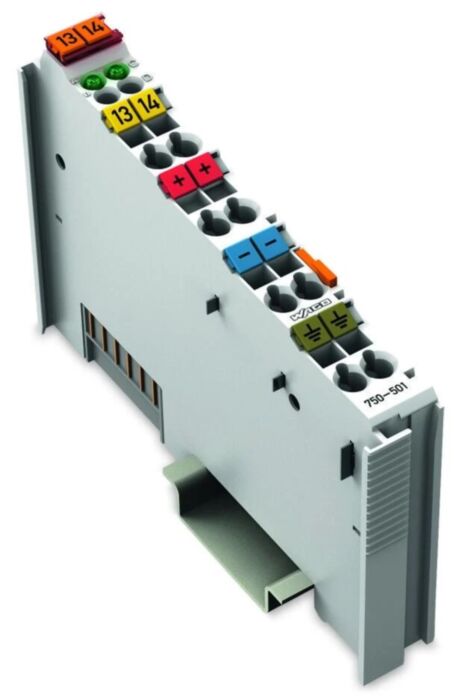

Wago 750-501 2Do, 24 Vdc 0.5A

Why Choose the WAGO 750-501 Digital Output Module?

The WAGO 750-501 is a compact 2-channel digital output module designed for the WAGO I/O System 750. It allows PLCs and industrial controllers to transmit switching signals to field devices such as actuators, relays, lamps and solenoids in industrial automation systems.

Each output channel provides 24 V DC high-side switching with a maximum current of 0.5 A per channel. This allows reliable control of inductive, resistive and signalling loads commonly used in machine automation and process control applications. :contentReference

The module integrates seamlessly with WAGO fieldbus couplers and programmable controllers to form flexible distributed automation architectures. Its compact housing and CAGE CLAMP® spring terminal connections ensure fast wiring and secure electrical connections within industrial control cabinets. :contentReference

Key Advantages

• 2 digital output channels for reliable actuator control.
• Supports 24 V DC switching with up to 0.5 A per output.
• High-side switching outputs suitable for industrial loads.
• Electronic short-circuit protection for improved reliability.
• Seamless integration with WAGO 750 Series distributed I/O systems.
• Quick installation using CAGE CLAMP® spring terminals.

Key Features

• 2 digital output channels.
• Output type: 24 V DC high-side switching.
• Maximum output current: 0.5 A per channel.
• Switching frequency: up to 5 kHz.
• Electronic short-circuit protection integrated.
• Status LEDs indicate output state.
• Compatible with WAGO fieldbus couplers and controllers.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-501
• Module type: Digital output module
• Number of outputs: 2 digital channels
• Output voltage: 24 V DC
• Maximum output current: 0.5 A per channel
• Switching frequency: up to 5 kHz
• Isolation: 500 V system/field isolation
• Supply voltage: 5 V DC via internal I/O bus
• Connection technology: CAGE CLAMP® spring terminals
• Mounting: 35 mm DIN rail
• Module width: approx. 12 mm
• Operating temperature: 0 °C to +55 °C
• Ingress protection: IP20

Industrial Digital Output Control

Digital output modules are used in industrial automation systems to transmit switching commands from PLCs to field devices. These outputs control equipment such as indicator lights, relays, contactors, valves and actuators used throughout manufacturing and process installations.

The WAGO 750-501 converts digital control signals from the automation controller into switching signals that operate external devices. When combined with other modules in the WAGO 750 Series distributed I/O platform, it enables scalable and reliable machine automation architectures.

Typical Applications

• PLC control of relays and contactors.
• Actuator and valve switching.
• Industrial machine automation systems.
• Status indicators and signalling devices.
• Distributed PLC and remote I/O architectures.

Trusted by Automation Engineers

WAGO 750 Series I/O modules are trusted worldwide by automation engineers and machine builders for creating reliable distributed control systems across manufacturing, energy and process automation environments.
