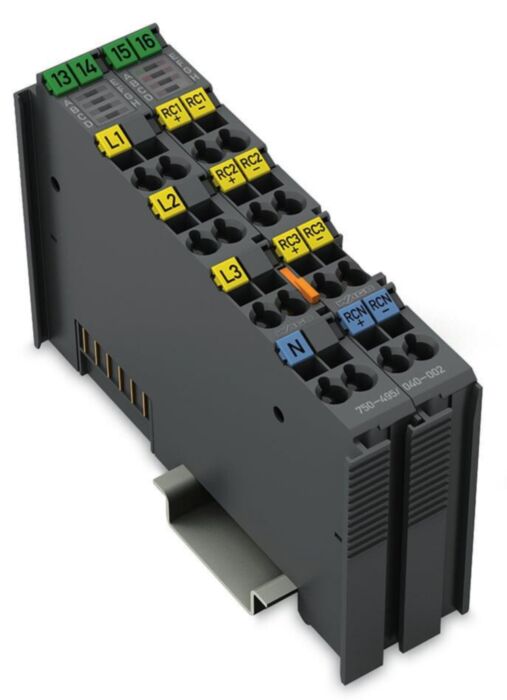

Wago 750-495/040-002 3-phase power measurement module AC 690 V / Rogoski coils double housing, XTR - Extreme version Dark Gray

Why Choose the WAGO 750-495/040-002 3-Phase Power Measurement Module?

The WAGO 750-495/040-002 is a specialised 3-phase power measurement module designed for the WAGO I/O System 750 XTR. It enables automation systems to measure electrical parameters within three-phase supply networks up to 690 VAC, providing accurate monitoring of power consumption and electrical performance in industrial installations. :contentReference

The module measures voltage directly from the network connections L1, L2, L3 and N while current signals are supplied via current transformers or Rogowski coils. This allows the module to capture detailed electrical data including voltage, current, power and energy values for industrial monitoring and energy management systems. :contentReference

Part of the WAGO XTR (Extreme) series, the module is engineered for harsh environments with extended temperature ranges and increased resistance to vibration, climatic stress and electromagnetic interference. It integrates seamlessly with WAGO fieldbus couplers and programmable controllers to create reliable distributed automation architectures. :contentReference

Key Advantages

• Integrated 3-phase power measurement for industrial energy monitoring.
• Measures electrical parameters in three-phase supply networks.
• Supports voltage measurement up to 690 VAC.
• Compatible with current transformers and Rogowski coils.
• XTR rugged design for harsh industrial environments.
• Seamless integration with WAGO 750 Series distributed I/O systems.

Key Features

• 3-phase power measurement module.
• Voltage measurement via L1, L2, L3 and N connections.
• Current measurement via external current transformers or Rogowski coils.
• Provides multiple measured electrical values including power and energy.
• DIN rail mounting for WAGO modular I/O systems.
• Designed for industrial energy monitoring and electrical analysis.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 XTR
• Model: 750-495/040-002
• Module type: 3-phase power measurement module
• Voltage measurement: up to 690 VAC
• Voltage inputs: L1, L2, L3, N
• Current measurement: via current transformers or Rogowski coils
• Number of analogue inputs: up to 6 measurement inputs
• Connection technology: WAGO CAGE CLAMP® spring terminals
• Mounting: 35 mm DIN rail
• Operating temperature: −40 °C to +70 °C (XTR extended range)
• Ingress protection: IP20

Industrial Power and Energy Monitoring

Monitoring electrical power consumption is essential in modern industrial systems. By measuring voltage, current and energy consumption within three-phase networks, automation systems can optimise energy efficiency, detect abnormal operating conditions and improve equipment reliability.

The WAGO 750-495/040-002 module captures electrical parameters directly from the power network and converts them into process data that PLCs and control systems can analyse. This enables accurate monitoring of industrial energy usage and electrical performance across manufacturing plants, utilities and infrastructure facilities.

Typical Applications

• Industrial power monitoring and energy management.
• Three-phase electrical network analysis.
• Monitoring of motors, drives and industrial loads.
• Energy consumption monitoring in manufacturing plants.
• Integration of electrical measurement into PLC systems.

Trusted by Automation Engineers

WAGO power measurement modules are widely used by automation engineers and energy management specialists to monitor electrical performance and optimise industrial power consumption.
