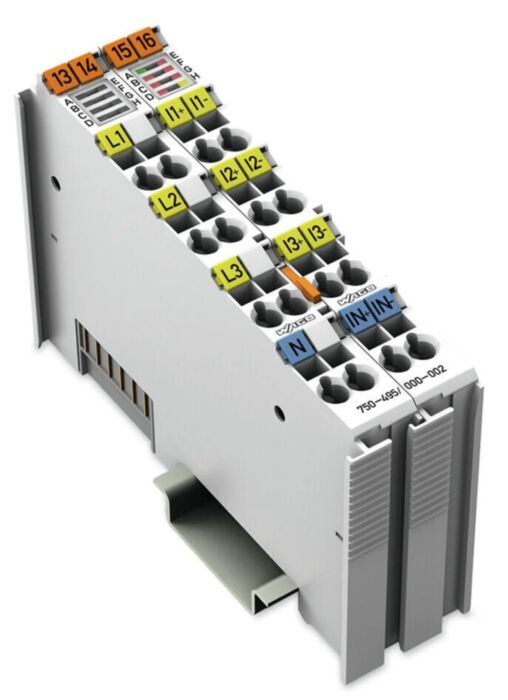

Wago 750-495/000-002 3-phase power measurement module AC 690 V / Rogoski coils double housing
MPN: 750-495/000-002
Alt. SKU: 750495000002
Special Price
£388.32
£323.60
Regular Price
£456.85
Why Choose the WAGO 750-495/000-002 Analogue Input Module?
The WAGO 750-495/000-002 is a reliable 4-channel analogue input module designed for the WAGO I/O System 750. It allows PLCs and industrial controllers to measure 4–20 mA current loop signals from industrial transmitters, sensors and instrumentation with high accuracy.
Each input channel converts analogue current signals into digital process values that can be processed by the automation controller. This enables monitoring of key process variables such as pressure, temperature, flow and level across manufacturing and industrial process installations.
The module integrates seamlessly with WAGO fieldbus couplers and programmable controllers, enabling flexible distributed automation architectures. Its compact DIN-rail housing and CAGE CLAMP® spring terminal technology allow quick installation and reliable electrical connections within industrial control panels.
Key Advantages
- Reliable 4-channel analogue current input for industrial automation systems.
- Supports standard 4–20 mA current loop signals.
- High-resolution analogue-to-digital conversion for accurate signal monitoring.
- Seamless integration with WAGO 750 Series distributed I/O systems.
- Compact modular design for scalable automation architectures.
- Fast installation using CAGE CLAMP® spring terminal connections.
Key Features
- 4 analogue input channels.
- Input signal type: current.
- Input range: 4–20 mA.
- Resolution: 12-bit analogue-to-digital conversion.
- High measurement stability for industrial instrumentation.
- DIN rail mounting for WAGO modular I/O systems.
- Compatible with WAGO fieldbus couplers and controllers.
Technical Specifications
- Manufacturer: WAGO
- Series: WAGO I/O System 750
- Model: 750-495/000-002
- Module type: Analogue input module
- Number of inputs: 4 analogue channels
- Signal type: Current
- Input range: 4…20 mA
- Resolution: 12 bit
- Typical conversion time: approx. 10 ms
- Input resistance: typically 100 Ω
- System supply voltage: 5 V DC via internal I/O bus
- Connection technology: WAGO CAGE CLAMP® spring terminals
- Mounting: 35 mm DIN rail
- Ingress protection: IP20
- Operating temperature: 0 °C to +55 °C
Industrial Current Loop Monitoring
The 4–20 mA current loop is widely used in industrial automation because it offers reliable signal transmission and strong immunity to electrical noise. Industrial transmitters commonly use this signal format to communicate process measurements to PLCs and control systems.
The WAGO 750-495/000-002 module converts these current loop signals into digital values that automation controllers can process. Combined with other modules in the WAGO 750 Series distributed I/O platform, it enables scalable automation architectures for monitoring and controlling industrial processes.
Typical Applications
- Industrial process instrumentation monitoring.
- Integration of pressure, flow, level and temperature transmitters.
- Manufacturing and process automation systems.
- Energy and utilities monitoring installations.
- Distributed PLC and remote I/O architectures.
Frequently Asked Questions
What does the WAGO 750-495/000-002 module do?
The module measures analogue current signals from sensors or transmitters and converts them into digital values that PLCs and automation controllers can process.
How many analogue inputs does the module provide?
The module provides four independent analogue input channels.
What signal range does the module support?
The module supports standard 4–20 mA current loop signals.
What systems is the module compatible with?
The module is designed for the WAGO I/O System 750 and integrates with WAGO fieldbus couplers and programmable controllers.
Where is this module typically used?
It is commonly used in industrial automation systems for monitoring process transmitters and integrating analogue instrumentation signals into PLC control systems.
Trusted by Automation Engineers
WAGO 750 Series I/O modules are trusted worldwide by automation engineers and system integrators to build reliable distributed control systems across manufacturing, process automation and industrial infrastructure.
| Manufacturer Part Number | 750-495/000-002 |
|---|---|
| Height | 104mm |
| Width | 32mm |
| Depth | 74mm |
| Manufacturer | Wago |
| Packed Quantity | 1 |
| HS Code | 85389099 |
| Barcode | 4050821841593 |
| Country of Manufacture | Germany |
| Alternative Product SKU | 750495000002 |
