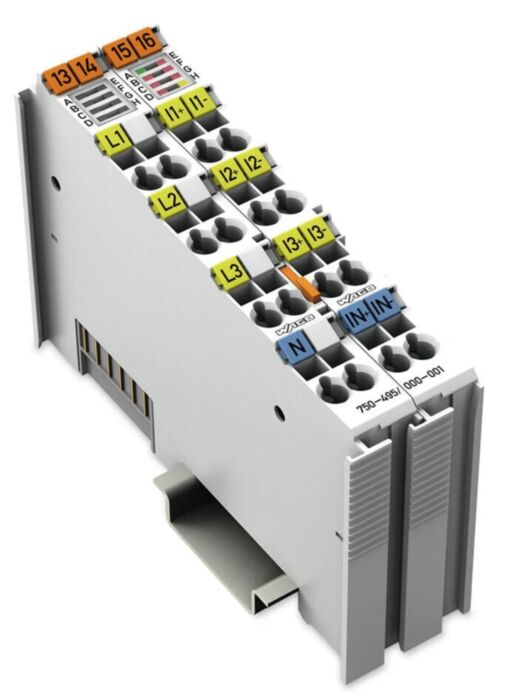

Wago 750-495/000-001 3-phase power measurement module AC 690 V / 5 A double housing

Why Choose the WAGO 750-495/000-001 Analogue Input Module?

The WAGO 750-495/000-001 is a high-precision 4-channel analogue input module designed for the WAGO I/O System 750. It allows PLCs and industrial controllers to measure 4–20 mA current loop signals from sensors, transmitters and industrial instrumentation with reliable accuracy.

Each input channel converts analogue current signals into digital process values that can be processed by the automation controller. This enables control systems to monitor critical process variables such as pressure, temperature, flow and level across manufacturing and process automation environments.

The module integrates seamlessly with WAGO fieldbus couplers and programmable controllers, forming part of a flexible distributed automation architecture. Its compact DIN-rail housing and CAGE CLAMP® spring terminal technology allow fast installation and dependable electrical connections within industrial control cabinets.

Key Advantages

• Reliable 4-channel analogue current input for industrial automation.
• Supports industry standard 4–20 mA current loop signals.
• High-resolution analogue-to-digital conversion for accurate measurement.
• Seamless integration with WAGO 750 Series distributed I/O systems.
• Compact modular design for scalable automation architectures.
• Quick installation using CAGE CLAMP® spring terminals.

Key Features

• 4 analogue input channels.
• Input signal type: current.
• Input range: 4–20 mA.
• Resolution: 12-bit analogue-to-digital conversion.
• High measurement stability for industrial instrumentation.
• DIN rail mounting for WAGO modular I/O systems.
• Compatible with WAGO fieldbus couplers and controllers.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-495/000-001
• Module type: Analogue input module
• Number of inputs: 4 analogue channels
• Signal type: Current
• Input range: 4…20 mA
• Resolution: 12 bit
• Typical conversion time: approx. 10 ms
• Input resistance: typically 100 Ω
• System supply voltage: 5 V DC via internal I/O bus
• Connection technology: WAGO CAGE CLAMP® spring terminals
• Mounting: 35 mm DIN rail
• Ingress protection: IP20
• Operating temperature: 0 °C to +55 °C

Industrial Current Loop Monitoring

The 4–20 mA current loop is one of the most widely used signal standards in industrial automation because it provides excellent noise immunity and reliable signal transmission across long cable distances. Industrial transmitters use this signal format to communicate measurements to PLCs and control systems.

The WAGO 750-495/000-001 module converts these current loop signals into digital values that automation controllers can process. Combined with other modules in the WAGO 750 Series distributed I/O platform, it enables engineers to build scalable automation architectures for industrial monitoring and process control.

Typical Applications

• Industrial process instrumentation monitoring.
• Integration of pressure, flow, level and temperature transmitters.
• Manufacturing and process automation systems.
• Energy and utilities monitoring installations.
• Distributed PLC and remote I/O architectures.

Trusted by Automation Engineers

WAGO 750 Series I/O modules are trusted worldwide by automation engineers and system integrators for building reliable distributed control systems across manufacturing, process automation and industrial infrastructure.
