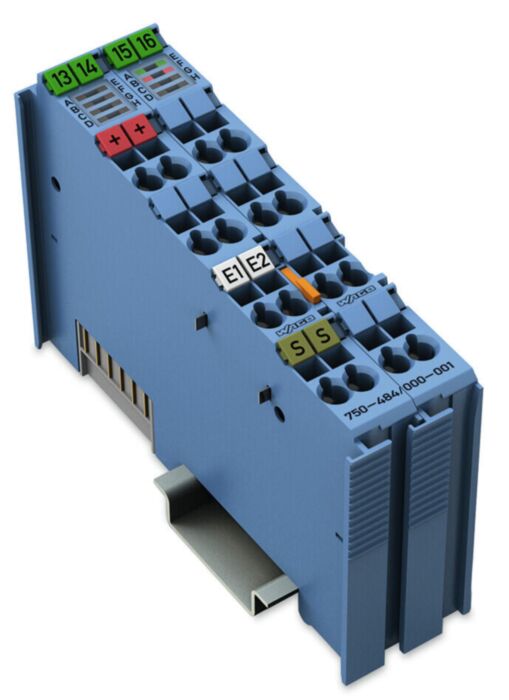

Wago 750-484/000-001 2AI 4-20mA HART Exi Blue

Why Choose the WAGO 750-484/000-001 HART Analogue Input Module?

The WAGO 750-484/000-001 is a specialised 2-channel analogue input module for the WAGO I/O System 750, designed to read standard 4–20 mA current signals from field transmitters while simultaneously supporting HART communication. This allows PLCs and automation controllers to monitor process values and configure smart field devices through the same connection.

Engineered for industrial process automation, the module enables direct integration of HART-enabled transmitters such as pressure, flow, level and temperature instruments. It supplies power to connected two-wire transmitters and captures analogue measurement signals while enabling digital communication with the device for diagnostics and configuration. :contentReference

The module also provides an intrinsically safe interface (Ex i) for field devices located in hazardous environments such as Zone 0 and Zone 1. Installed within the WAGO distributed I/O system, it allows reliable process measurement in chemical plants, energy facilities and other demanding industrial environments. :contentReference

Key Advantages

• Reliable 2-channel analogue input for industrial process instrumentation.
• Supports industry-standard 4–20 mA current loop signals.
• HART protocol integration for smart field device communication.
• Intrinsic safety (Ex i) for hazardous-area instrumentation.
• Integrated power supply for two-wire transmitters.
• Seamless integration with WAGO 750 Series distributed I/O systems.

Key Features

• 2 analogue input channels.
• Input signal type: 4–20 mA current loop.
• HART communication support.
• Intrinsic safety Ex i interface.
• Parameterisable input filtering.
• Diagnostics including wire-break and range monitoring.
• DIN-rail mounting for WAGO modular I/O nodes.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-484/000-001
• Module type: Analogue input module
• Number of inputs: 2 analogue channels
• Signal type: Current
• Input range: 4…20 mA
• Sensor connection: 2-wire transmitters
• Resolution: 12 bit
• Typical conversion time: approx. 10 ms
• Measurement accuracy: approx. ±0.2 % of full scale
• Field supply voltage: 24 V DC via power jumper contacts
• System supply voltage: 5 V DC via internal bus
• Connection technology: CAGE CLAMP® spring terminals
• Mounting: 35 mm DIN rail
• Operating temperature: 0 °C to +55 °C
• Ingress protection: IP20

Industrial HART Instrumentation Integration

The HART (Highway Addressable Remote Transducer) protocol allows digital communication with smart transmitters over standard 4–20 mA current loops. This enables engineers to access diagnostic information, device configuration parameters and additional process variables without additional wiring.

The WAGO 750-484/000-001 module combines analogue signal acquisition and HART communication, allowing automation controllers to read measurement data and communicate with field devices through a single distributed I/O platform. Up to four HART dynamic variables per channel can be mapped into the PLC process image for advanced control and monitoring. :contentReference

Typical Applications

• Process instrumentation in chemical and petrochemical plants.
• Integration of HART-enabled pressure, flow and level transmitters.
• Energy generation and utilities monitoring systems.
• Industrial automation and distributed PLC control systems.
• Hazardous-area process measurement installations.

Trusted by Automation Engineers

WAGO 750 Series I/O modules are widely trusted by system integrators and control engineers for building reliable distributed automation systems across process, energy and industrial manufacturing sectors.
