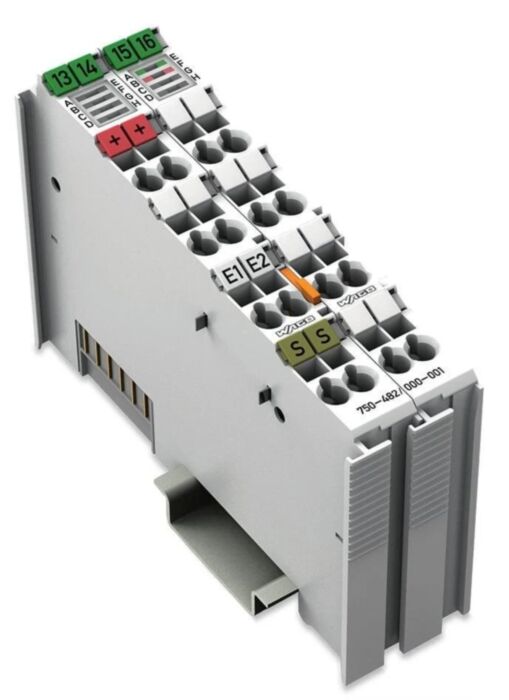

Wago 750-482/000-001 2AI 4-20mA HART

Why Choose the WAGO 750-482/000-001 Analogue Input Module?

The WAGO 750-482/000-001 is a high-precision 2-channel analogue voltage input module designed for integration with the WAGO 750 Series distributed I/O system. It enables PLCs and industrial automation controllers to capture analogue signals from sensors, transmitters and instrumentation devices and convert them into digital values for monitoring, diagnostics and process control.

The module supports standard ±10 V analogue voltage signals, a widely used signal range for industrial automation and motion control applications. Integrated signal conditioning ensures stable signal acquisition and reliable measurement accuracy within distributed automation architectures.

When combined with WAGO fieldbus couplers and programmable controllers, the 750-482/000-001 allows engineers to build scalable automation systems for manufacturing equipment, industrial process monitoring and building management installations.

Key Advantages

• Reliable 2-channel analogue voltage input.
• Supports ±10 V industrial signal range.
• High-resolution signal conversion for precise monitoring.
• Compact module designed for WAGO 750 Series distributed I/O systems.
• Seamless integration with WAGO fieldbus couplers and controllers.
• Ideal for sensors, transmitters and industrial instrumentation.

Key Features

• 2 analogue input channels.
• Designed for ±10 V voltage signal inputs.
• High-resolution analogue-to-digital conversion.
• Status LEDs for diagnostics and module operation.
• CAGE CLAMP® spring terminals for secure wiring.
• Compatible with WAGO 750 Series fieldbus couplers and controllers.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO 750 Series I/O System
• Model: 750-482/000-001
• Module type: Analogue voltage input module
• Number of inputs: 2
• Signal range: ±10 V
• Resolution: 16-bit typical
• Conversion time: approx. 10 ms
• Diagnostic features: LED status indication
• System supply: 5 V DC via data contacts
• Connection technology: WAGO CAGE CLAMP® terminals
• Mounting: DIN rail (EN 60715)
• Operating temperature: approx. 0 °C to +55 °C
• Protection rating: IP20
• Module width: approx. 12 mm

Industrial Signal Monitoring

Voltage signals such as ±10 V are widely used in industrial automation systems to transmit measurement values from sensors and instrumentation devices. These signals are commonly used in motion control systems, industrial monitoring equipment and advanced automation processes.

Modules like the WAGO 750-482/000-001 convert analogue voltage signals into digital process values for PLCs and automation controllers, enabling accurate monitoring and control across distributed industrial automation networks.

Typical Applications

• Industrial sensor and transmitter integration.
• Process monitoring and instrumentation systems.
• Manufacturing equipment control.
• Motion control and drive monitoring.
• Building automation and HVAC control systems.

Trusted by Automation Engineers

WAGO 750 Series I/O modules are trusted worldwide by automation engineers and system integrators to build reliable distributed control systems across industrial automation environments.
