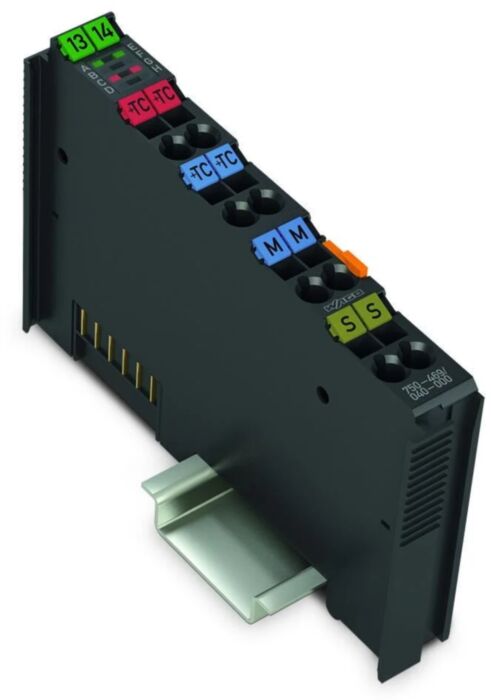

Wago 750-469/040-000 2Ai, Tc

Why Choose the WAGO 750-469/040-000 Analogue Voltage Input Module?

The WAGO 750-469/040-000 is a robust 2-channel analogue voltage input module designed for use within the WAGO 750 Series XTR distributed I/O system. It enables PLCs and automation controllers to measure voltage signals from industrial sensors and convert them into digital values for monitoring, control and process automation.

The module processes 0–10 V DC analogue signals, a widely used standard across industrial automation and building control systems. Its XTR design provides enhanced resistance to vibration, electromagnetic interference and extreme temperatures, making it suitable for harsh industrial environments.

When integrated with WAGO fieldbus couplers and controllers, the 750-469/040-000 provides reliable signal acquisition for distributed automation systems used in manufacturing plants, energy infrastructure and demanding industrial installations.

Key Advantages

• Reliable 2-channel analogue voltage measurement.
• Supports 0–10 V industrial voltage signals.
• Designed for harsh environments with extended temperature capability.
• High-resolution signal conversion for accurate monitoring.
• Compact design for WAGO 750 Series XTR distributed I/O systems.
• Seamless integration with WAGO fieldbus couplers and controllers.

Key Features

• 2 analogue voltage input channels.
• 0–10 V DC input range.
• 12-bit analogue-to-digital conversion.
• Typical conversion time approx. 4 ms.
• High EMC immunity for industrial environments.
• CAGE CLAMP® spring terminals for secure wiring.
• Designed for the WAGO 750 XTR I/O platform.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO 750 Series XTR I/O System
• Model: 750-469/040-000
• Module type: Analogue voltage input module
• Number of inputs: 2
• Signal type: Voltage input
• Input range: 0–10 V DC
• Signal characteristic: Single-ended
• Resolution: 12-bit
• Typical conversion time: ≤ 4 ms
• Internal resistance: approx. 133 kΩ
• System supply: 5 V DC via data contacts
• Connection technology: WAGO CAGE CLAMP®
• Mounting: DIN rail (EN 60715)
• Operating temperature: approx. −40 °C to +70 °C
• Protection rating: IP20
• Module width: approx. 12 mm

Industrial Analogue Signal Acquisition

Voltage-based analogue signals such as 0–10 V are widely used across automation systems to transmit measurement data and control signals. These signals are common in industrial sensors, actuators, speed controllers and HVAC systems.

Modules like the WAGO 750-469/040-000 convert these analogue signals into digital values for PLCs and automation controllers, enabling precise monitoring and control across distributed industrial automation networks.

Typical Applications

• Industrial sensors with 0–10 V output signals.
• Machine monitoring and process instrumentation.
• Manufacturing automation and production equipment.
• Building automation and HVAC control.
• Infrastructure and environmental monitoring.

Trusted by Automation Engineers

WAGO 750 Series I/O modules are trusted worldwide by automation engineers and system integrators to build reliable distributed control systems across demanding industrial automation environments.
