Wago 750-468 4Ai, 0-10 Vdc Se

Why Choose the WAGO 750-468 Analogue Current Input Module?

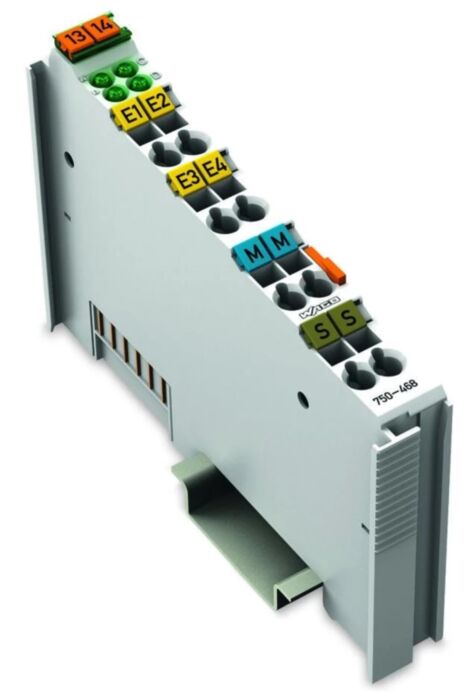

The WAGO 750-468 is a compact and precise 2-channel analogue current input module designed for the WAGO 750 Series distributed I/O system. It enables PLCs and industrial automation controllers to capture current signals from field instrumentation and convert them into digital values for monitoring, control and data acquisition.

The module supports 4–20 mA current loop signals, the most widely used signal standard in industrial process instrumentation. Current loop transmission provides excellent noise immunity and stable signal transmission over long cable distances, making it ideal for demanding industrial environments.

When used with WAGO fieldbus couplers and programmable controllers, the 750-468 forms part of scalable distributed automation architectures used across manufacturing, utilities, energy infrastructure and building management systems.

Key Advantages

• Reliable 2-channel analogue current measurement.
• Optimised for 4–20 mA industrial current loops.
• High-resolution signal conversion for accurate monitoring.
• Compact design for WAGO 750 Series distributed I/O systems.
• Seamless integration with WAGO controllers and fieldbus couplers.
• Ideal for industrial process instrumentation.

Key Features

• 2 analogue current input channels.
• 4–20 mA input range.
• High-resolution analogue-to-digital conversion.
• Integrated signal conditioning.
• Status LEDs for diagnostics and operation indication.
• CAGE CLAMP® spring terminals for secure wiring.
• Compatible with WAGO 750 Series fieldbus couplers and controllers.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO 750 Series I/O System
• Model: 750-468
• Module type: Analogue current input module
• Number of inputs: 2
• Signal type: Current input
• Input range: 4–20 mA
• Resolution: 16-bit typical
• Conversion time: approx. 10 ms
• Diagnostic features: LED status indication
• System supply: 5 V DC via data contacts
• Connection technology: WAGO CAGE CLAMP® terminals
• Mounting: DIN rail (EN 60715)
• Operating temperature: approx. 0 °C to +55 °C
• Protection rating: IP20
• Module width: approx. 12 mm

Industrial Analogue Signal Acquisition

Current loop signalling such as 4–20 mA is widely used in industrial automation because it provides reliable signal transmission over long cable distances and strong resistance to electrical interference. These signals are commonly produced by pressure transmitters, flow sensors, temperature transmitters and level measurement devices.

Modules such as the WAGO 750-468 convert these analogue signals into digital values for PLCs and automation controllers, enabling accurate monitoring and control within distributed industrial automation networks.

Typical Applications

• Industrial process monitoring using 4–20 mA transmitters.
• Pressure, flow and level instrumentation.
• Manufacturing automation and machine monitoring.
• Energy systems and utilities monitoring.
• Building automation and environmental monitoring.

Trusted by Automation Engineers

WAGO 750 Series I/O modules are widely trusted by automation engineers and system integrators to build reliable distributed control systems across industrial automation environments.
