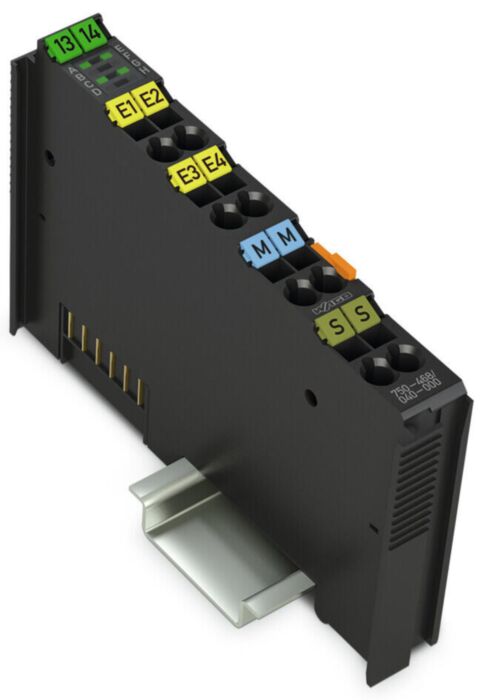

Wago 750-468/040-000 4Ai, 0-10 Vdc Se

Why Choose the WAGO 750-468/040-000 Analogue Voltage Input Module?

The WAGO 750-468/040-000 is a rugged 4-channel analogue voltage input module designed for the WAGO 750 Series XTR distributed I/O system. It enables PLCs and automation controllers to capture analogue voltage signals from sensors and instrumentation devices and convert them into digital values for monitoring and process control.

The module processes standard 0–10 V DC analogue signals using single-ended inputs. Its design allows reliable signal acquisition even in harsh industrial environments, thanks to enhanced EMC resistance, extended temperature capability and robust mechanical construction. :contentReference

Integrated seamlessly with WAGO fieldbus couplers and controllers, the 750-468/040-000 provides dependable analogue signal acquisition for distributed automation systems used in manufacturing plants, infrastructure installations and building management systems.

Key Advantages

• Reliable 4-channel analogue voltage measurement.
• Supports 0–10 V DC industrial signal standards.
• Designed for harsh environments with extended temperature range and high EMC immunity.
• High-resolution analogue-to-digital conversion for precise monitoring.
• Compact module for WAGO 750 Series XTR distributed I/O systems.
• Seamless integration with WAGO fieldbus couplers and controllers.

Key Features

• 4 analogue voltage input channels.
• 0–10 V DC single-ended input signals.
• 12-bit resolution analogue-to-digital conversion.
• Typical conversion time approx. 4 ms.
• Shield connection to DIN rail for noise reduction.
• CAGE CLAMP® spring terminals for secure wiring.
• Designed for the WAGO 750 XTR I/O platform.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO 750 Series XTR I/O System
• Model: 750-468/040-000
• Module type: Analogue voltage input module
• Number of inputs: 4
• Signal type: Voltage input
• Input range: 0–10 V DC
• Signal characteristic: Single-ended
• Resolution: 12-bit
• Typical conversion time: ≤ 4 ms
• Internal resistance: approx. 133 kΩ
• System supply: 5 V DC via data contacts
• Connection technology: WAGO CAGE CLAMP®
• Mounting: DIN rail (EN 60715)
• Operating temperature: approx. −40 °C to +70 °C
• Protection rating: IP20
• Module width: approx. 12 mm

Industrial Analogue Signal Acquisition

Voltage-based analogue signals such as 0–10 V are widely used in industrial automation and building control systems to transmit sensor measurements and control signals. These signals are commonly used for speed control, actuator positioning, HVAC systems and process instrumentation.

Modules like the WAGO 750-468/040-000 convert these analogue signals into digital values for PLCs and automation controllers, enabling precise monitoring and control across distributed industrial automation architectures. :contentReference

Typical Applications

• Industrial sensors with 0–10 V output signals.
• Machine monitoring and process instrumentation.
• HVAC and building automation systems.
• Manufacturing automation and production equipment.
• Infrastructure and environmental monitoring.
