Why Choose the WAGO 750-455 4-Channel Analog Input Module?

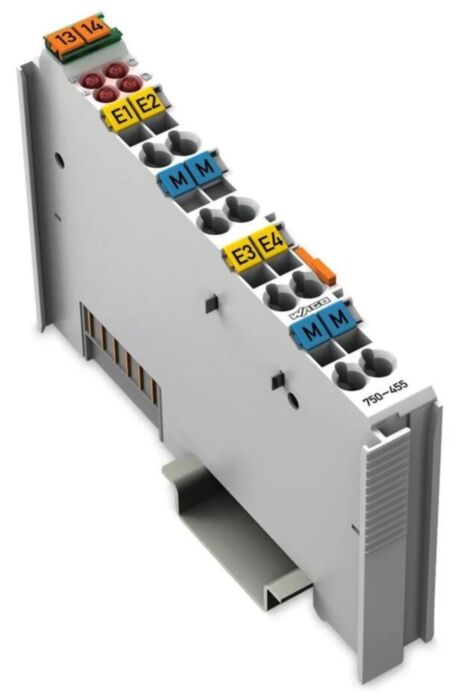

The WAGO 750-455 is a high-precision 4-channel analog input module designed for the WAGO I/O System 750. It allows PLCs and automation controllers to measure standard 4–20 mA current loop signals from industrial sensors and transmitters, enabling accurate monitoring of process variables across distributed control systems.

Each input channel converts analog current signals into digital process data for use by fieldbus couplers or controllers. The module uses a single-ended input configuration with galvanic isolation between the system and field levels, providing reliable signal acquisition and improved protection against electrical interference. :contentReference

Designed for compact control cabinets, the module features a slim 12 mm DIN rail housing and secure CAGE CLAMP® spring terminals. This combination allows fast installation, high channel density and vibration-resistant connections in industrial automation panels.

Key Advantages

• Reliable 4-channel analog input module for automation systems.
• Supports standard 4–20 mA current loop signals.
• Galvanically isolated inputs for reliable industrial operation.
• Compact DIN rail module for distributed I/O installations.
• High-accuracy signal acquisition with stable measurement performance.
• Compatible with WAGO I/O System 750 controllers and couplers.

Key Features

• 4 analog input channels.
• 4–20 mA current input range.
• Single-ended signal input.
• 12-bit measurement resolution.
• Approx. 10 ms conversion time.
• 2-wire transmitter connections.
• LED diagnostics for channel status.
• DIN rail mounted modular design.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-455
• Module type: Analog input module
• Number of inputs: 4 channels
• Signal type: Current input
• Input range: 4–20 mA DC
• Signal characteristic: Single-ended
• Resolution: 12-bit
• Conversion time: approx. 10 ms
• Input voltage (max): 32 V
• Input resistance: approx. 100 Ω
• System supply voltage: 5 V DC via system bus
• Current consumption: approx. 65 mA
• Isolation: approx. 500 V system/field
• Connection technology: CAGE CLAMP® spring terminals
• Mounting: 35 mm DIN rail
• Module width: approx. 12 mm
• Operating temperature: 0 °C to +55 °C
• Protection rating: IP20

Industrial Current Loop Monitoring

Current loop signalling such as 4–20 mA is widely used in industrial automation systems because it enables reliable signal transmission over long cable distances while maintaining strong immunity to electrical noise. These signals are commonly used by field transmitters measuring pressure, flow, level or temperature.

The WAGO 750-455 converts these analog current signals into digital process data that PLCs can analyse for monitoring, alarms and process control. This enables accurate and reliable process supervision across distributed automation architectures. :contentReference

Typical Applications

• Monitoring analog signals from industrial transmitters.
• Integration of 4–20 mA process sensors.
• Process automation and instrumentation systems.
• Energy and utility monitoring.
• Industrial manufacturing and machine control.

Trusted by Automation Engineers

WAGO I/O System 750 modules are widely used by machine builders and automation engineers to implement scalable distributed control systems across industrial and process automation environments.
