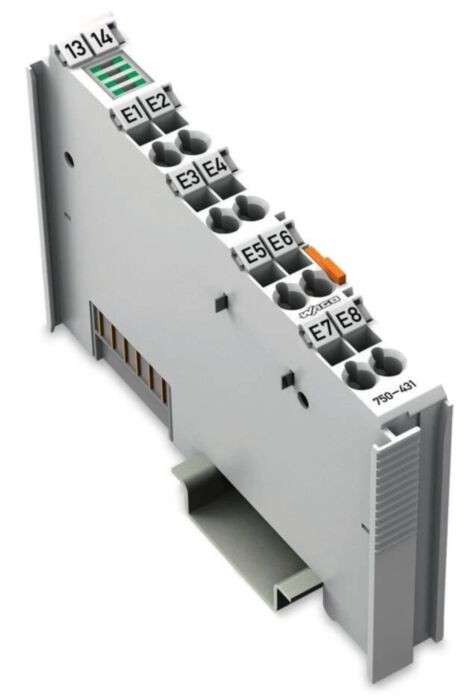

Wago 750-431 8Di, 24 Vdc 0.2ms

Why Choose the WAGO 750-431 8-Channel Digital Input Module?

The WAGO 750-431 is a high-density 8-channel digital input module designed for the WAGO I/O System 750. It allows PLCs and industrial controllers to monitor 24 V DC digital signals from sensors, switches and machine contacts, enabling reliable signal acquisition across distributed automation systems.

The module receives digital control signals from field devices and transmits their switching state to a WAGO fieldbus coupler or programmable controller. Integrated noise-rejection filtering prevents electrical interference or transient spikes from being interpreted as valid input signals, improving operational reliability in industrial environments.

With eight input channels in a compact DIN rail module, the 750-431 provides efficient use of cabinet space while maintaining reliable signal processing. The module includes power jumper contacts for field supply distribution and uses WAGO CAGE CLAMP® spring pressure terminals for fast, secure wiring within control panels.

Key Advantages

• High-density 8-channel digital input module.
• Designed for standard 24 V DC industrial control signals.
• Noise-rejection input filtering improves signal stability.
• High-side switching input configuration for sensor connections.
• CAGE CLAMP® spring terminals provide secure maintenance-free wiring.
• Compact DIN rail design for distributed I/O systems.

Key Features

• 8 digital input channels.
• 24 V DC signal voltage.
• Integrated digital input filter.
• High-side switching input characteristic.
• Supports 1-conductor sensor connections.
• LED indicators for channel status.
• Power jumper contacts for supply distribution.
• DIN rail mounted modular design.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-431
• Module type: Digital input module
• Number of inputs: 8 channels
• Signal voltage: 24 V DC
• Voltage range signal (0): −3 to +5 V DC
• Voltage range signal (1): 15 to 30 V DC
• Input current per channel: approx. 2.8 mA
• Input filter: approx. 3 ms
• System supply voltage: 5 V DC via system bus
• Field supply voltage: 24 V DC via power jumper contacts
• Isolation: approx. 500 V between system and field levels
• Connection technology: CAGE CLAMP® spring terminals
• Mounting: 35 mm DIN rail
• Module width: approx. 12 mm
• Protection rating: IP20
• Operating temperature: approx. 0 °C to +55 °C

Industrial Digital Signal Monitoring

Digital input modules provide the interface between field devices and PLC control systems by converting electrical signals from sensors, switches and machine contacts into digital process data. These signals allow automation systems to detect equipment states and trigger control logic within industrial processes.

The modular architecture of the WAGO 750 Series allows distributed automation networks to expand easily. Engineers can add additional I/O modules as systems grow, creating scalable control architectures with simplified wiring and improved flexibility across manufacturing environments.

Typical Applications

• Monitoring proximity sensors and limit switches.
• PLC signal acquisition in industrial machinery.
• Machine status monitoring on production lines.
• Distributed I/O systems for factory automation.
• Industrial infrastructure and facility automation.

Trusted by Automation Engineers

WAGO 750 Series I/O modules are widely used by machine builders and system integrators to build scalable distributed control systems across manufacturing and industrial automation environments.
