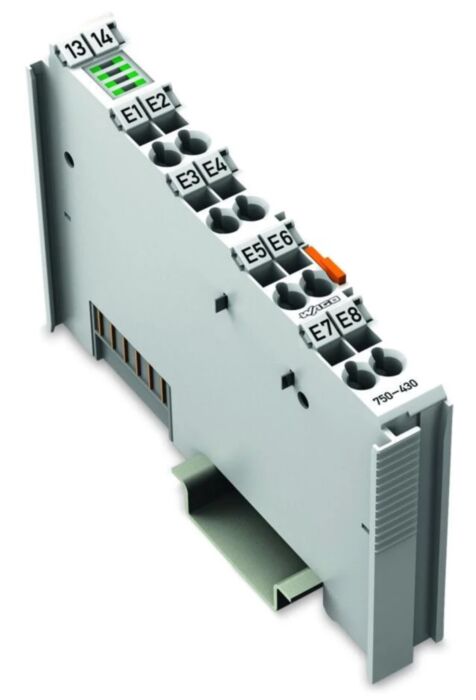

Wago 750-430 8Di, 24 Vdc 3ms

Why Choose the WAGO 750-430 8-Channel Digital Input Module?

The WAGO 750-430 is a compact 8-channel digital input module designed for the WAGO I/O System 750. It enables PLCs and industrial controllers to monitor 24 V DC digital signals from sensors, switches and other field devices, providing reliable signal acquisition within distributed automation systems.

The module receives control signals from digital field devices such as proximity sensors, switches and transmitters, converting them into process data for a connected WAGO fieldbus coupler or programmable controller. Each channel includes an integrated noise-rejection filter with a 3 ms time constant, ensuring stable signal detection in industrial environments. :contentReference

With eight digital inputs in a slim 12 mm housing, the module provides high channel density while maintaining minimal cabinet space requirements. Electrical isolation between the system and field levels improves operational safety, while CAGE CLAMP® spring pressure connection technology ensures secure vibration-resistant wiring. :contentReference

Key Advantages

• High-density 8-channel digital input module.
• Designed for 24 V DC industrial control signals.
• Integrated 3 ms noise-rejection filter improves signal stability.
• High-side switching input configuration for sensor connections.
• CAGE CLAMP® spring terminals provide secure maintenance-free wiring.
• Compact 12 mm DIN rail design for space-efficient installations.

Key Features

• 8 digital input channels.
• 24 V DC signal voltage.
• 3 ms digital input filter.
• High-side switching input characteristic.
• Supports 1-conductor sensor connections.
• LED indicators for each channel status.
• Power jumper contacts for supply distribution.
• DIN rail mounted modular design.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-430
• Module type: Digital input module
• Number of inputs: 8 channels
• Signal voltage: 24 V DC
• Voltage range signal (0): −3 to +5 V DC
• Voltage range signal (1): 15 to 30 V DC
• Input current per channel: approx. 2.8 mA
• Input filter: approx. 3 ms
• System supply voltage: 5 V DC via system bus
• Field supply voltage: 24 V DC via power jumper contacts
• Isolation: approx. 500 V between system and field levels
• Connection technology: CAGE CLAMP® spring terminals
• Mounting: 35 mm DIN rail
• Module width: approx. 12 mm
• Protection rating: IP20
• Operating temperature: approx. 0 °C to +55 °C

Industrial Digital Signal Monitoring

Digital input modules form the essential interface between field devices and industrial control systems. They convert electrical signals from sensors, push buttons and machine contacts into digital data that PLCs and automation controllers use to monitor and control industrial processes.

The WAGO 750 Series modular I/O platform allows distributed automation networks to scale easily. Engineers can add additional modules as systems expand, enabling flexible control architectures while reducing wiring complexity across production environments.

Typical Applications

• Monitoring proximity sensors and limit switches.
• PLC signal acquisition in industrial machinery.
• Machine status monitoring on production lines.
• Distributed I/O networks for factory automation.
• Industrial infrastructure and facility automation systems.

Trusted by Automation Engineers

WAGO 750 Series I/O modules are widely used by system integrators and machine builders to build scalable distributed control systems across manufacturing and industrial automation environments.
