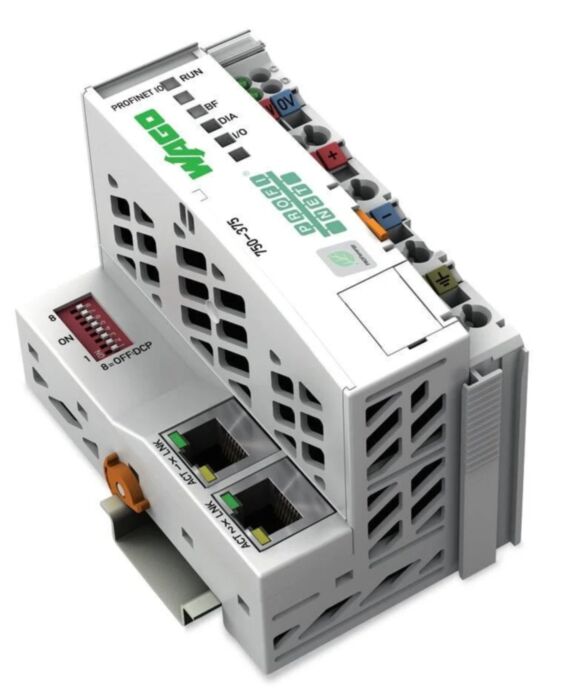

Wago 750-375 FC Profinet, G3

Why Choose the WAGO 750-375 PROFINET IO Fieldbus Coupler?

The WAGO 750-375 is an advanced PROFINET IO fieldbus coupler designed to integrate the modular WAGO I/O System 750/753 into industrial Ethernet automation networks. It enables reliable real-time communication between distributed field devices and PLC controllers using the widely adopted PROFINET industrial networking standard. :contentReference

During start-up the coupler automatically detects all connected digital, analogue and speciality I/O modules and creates a local process image. This image allows controllers to access field signals efficiently while maintaining deterministic communication across the network. :contentReference

The device includes an integrated two-port Ethernet switch, allowing network wiring in a line topology without additional switches or hubs. This simplifies installation and reduces infrastructure requirements in distributed automation systems. :contentReference

Key Advantages

• Reliable PROFINET IO real-time industrial Ethernet communication.
• Automatic detection and configuration of connected I/O modules.
• Integrated two-port Ethernet switch for simple line topology.
• Supports mixed installations of digital, analogue and specialty modules.
• Scalable architecture supporting up to 64 I/O modules per node.
• Supports advanced PROFINET features such as device naming and diagnostics.

Key Features

• PROFINET IO fieldbus coupler for WAGO I/O System 750/753.
• 10/100 Mbit/s Ethernet communication.
• Integrated two RJ-45 Ethernet ports with switch.
• Automatic creation of a local process image for connected modules.
• Configuration via PC and PROFINET engineering tools.
• DIP switch for device naming and configuration options.
• DIN rail mounting for industrial control cabinets.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 / 753
• Model: 750-375
• Device type: PROFINET IO fieldbus coupler
• Communication protocol: PROFINET IO
• Ethernet speed: 10 / 100 Mbit/s
• Network connection: 2 × RJ-45 Ethernet
• Transmission method: 100Base-TX
• Maximum modules per node: 64
• Maximum modules with bus extension: up to 250
• Process image: up to 512 bytes input / 512 bytes output
• Supply voltage: 24 V DC (−25% to +30%)
• Transmission medium: Twisted pair S-UTP Cat.5
• Maximum network segment length: 100 m
• Mounting: DIN rail (EN 60715)
• Operating temperature: approx. 0 °C to +55 °C
• Ingress protection: IP20

PROFINET Industrial Network Integration

PROFINET is widely used in industrial automation systems to connect PLC controllers, distributed I/O modules and industrial devices over Ethernet infrastructure. The WAGO 750-375 enables field-level sensors and actuators connected to WAGO I/O modules to communicate with controllers through the PROFINET protocol, allowing scalable distributed automation architectures. :contentReference

Within the WAGO I/O architecture, signals from connected modules are automatically mapped into the Ethernet process image and transmitted across the network. Digital signals are transferred bit-by-bit while analogue values are transmitted word-by-word, ensuring efficient communication with PLC systems. :contentReference

Typical Applications

• Distributed PLC I/O systems using PROFINET networks.
• Industrial machine automation.
• Factory automation and production lines.
• Process monitoring and control systems.
• Integration of sensors, actuators and analogue devices.

Trusted by Automation Engineers

WAGO PROFINET fieldbus couplers are widely used by automation engineers and system integrators to connect distributed I/O modules to industrial Ethernet control networks.
