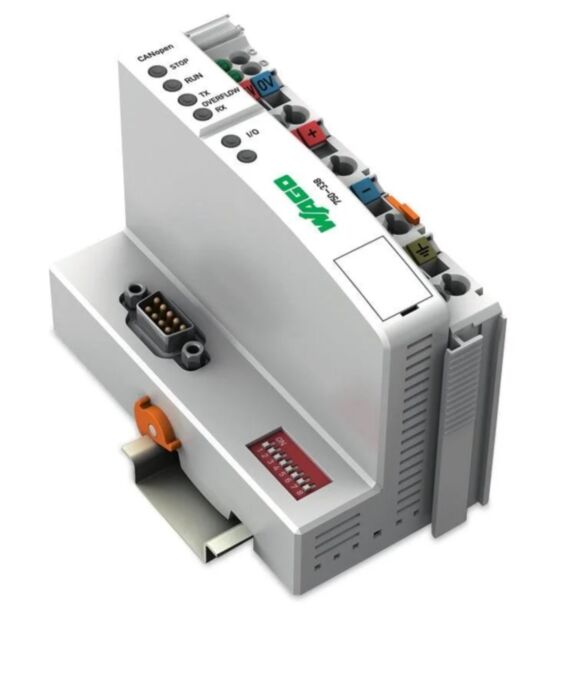

Wago 750-338 FC Canopen, Dsub

Why Choose the WAGO 750-338 CANopen Fieldbus Coupler?

The WAGO 750-338 is a CANopen fieldbus coupler with D-Sub connection designed to integrate the modular WAGO I/O System 750/753 into CANopen automation networks. Acting as the communication interface between distributed field devices and PLC or industrial controllers, the coupler exchanges process data between connected I/O modules and the CANopen master system. :contentReference

During start-up the coupler automatically detects all connected I/O modules and creates a local process image representing the inputs and outputs of the installed system. Digital signals are transmitted bit-by-bit while analogue and specialty module data are transmitted as words or bytes, enabling efficient communication across distributed industrial control architectures. :contentReference

Designed for scalable automation systems, the coupler supports up to 64 connected I/O modules per node and communicates with the controller using CANopen process data objects (PDOs) and service data objects (SDOs), providing reliable data exchange between sensors, actuators and automation equipment. :contentReference

Key Advantages

• Reliable CANopen fieldbus communication for distributed automation systems.
• Automatic detection and configuration of connected I/O modules.
• Supports mixed configurations of digital, analogue and speciality modules.
• Flexible communication speeds from 10 kbit/s to 1 Mbit/s.
• Supports up to 64 I/O modules per node.
• Compact DIN rail design for industrial automation control cabinets.

Key Features

• CANopen fieldbus coupler for WAGO I/O System 750/753.
• Communication based on CANopen DS-301 protocol.
• DIP switch configuration for node ID and baud rate.
• Supports up to 32 Tx PDOs and 32 Rx PDOs.
• Automatic generation of a local process image.
• D-Sub 9 CANopen fieldbus connector.
• DIN rail mounting for industrial control cabinets.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 / 753
• Model: 750-338
• Device type: CANopen fieldbus coupler
• Communication protocol: CANopen (DS-301)
• Transmission speed: 10 kbit/s → 1 Mbit/s
• Maximum modules per node: 64
• Maximum fieldbus nodes: up to 110
• Process image: up to 512 bytes input / 512 bytes output
• Supply voltage: 24 V DC
• Power jumper contact current: up to 10 A
• Fieldbus connection: 9-pin D-Sub connector
• Mounting: DIN rail (EN 60715)
• Operating temperature: approx. 0 °C to +55 °C
• Ingress protection: IP20

Industrial Automation Fieldbus Communication

Fieldbus couplers provide the communication bridge between distributed I/O modules and central automation controllers. The WAGO 750-338 enables sensors, actuators and monitoring devices connected to WAGO I/O modules to communicate with PLCs or industrial PCs over CANopen industrial networks. :contentReference

Within the WAGO I/O System architecture, the coupler automatically maps signals from connected modules into CANopen PDO structures. Digital signals are grouped into bytes while analogue values are transmitted as words, ensuring efficient process data exchange between field devices and the automation controller. :contentReference

Typical Applications

• Distributed PLC I/O systems using CANopen networks.
• Industrial machine automation.
• Factory automation and production equipment.
• Process monitoring and control systems.
• Integration of sensors, actuators and analogue devices.

Trusted by Automation Engineers

WAGO CANopen fieldbus couplers are widely used by machine builders and automation engineers to integrate distributed I/O modules into industrial CANopen control networks.
