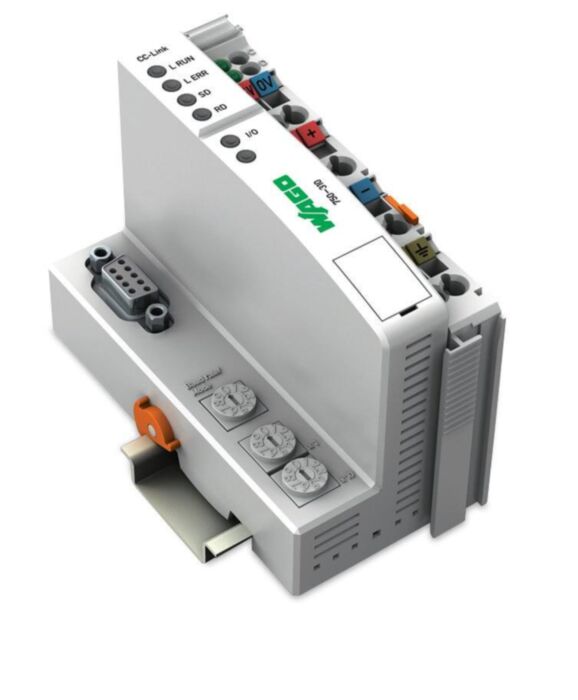

Wago 750-310 FC Cc-Link,

Why Choose the WAGO 750-310 CC-Link Fieldbus Coupler?

The WAGO 750-310 is a CC-Link fieldbus coupler designed to connect the modular WAGO I/O System 750/753 to a CC-Link industrial network. Acting as the communication gateway between field devices and the control system, the coupler exchanges process data between connected I/O modules and the PLC via the CC-Link fieldbus.

The coupler automatically detects all connected digital, analogue and specialty modules and creates a local process image representing the installed I/O configuration. This process image is transferred over the CC-Link network to the master controller, enabling reliable monitoring and control of sensors and actuators within distributed automation systems. :contentReference

Supporting up to 64 connected I/O modules within a single node, the 750-310 enables scalable automation architectures for machine builders and system integrators implementing distributed I/O systems across manufacturing environments. :contentReference

Key Advantages

• Reliable CC-Link communication interface for WAGO I/O systems.
• Automatic detection and configuration of connected I/O modules.
• Supports mixed installations of digital, analogue and speciality modules.
• Scalable architecture supporting up to 64 modules per node.
• Efficient process data exchange between field devices and PLC systems.
• Compact DIN rail module for industrial automation cabinets.

Key Features

• CC-Link fieldbus coupler for WAGO I/O System 750/753.
• Automatic generation of a local process image for connected modules.
• Supports mixed configurations of digital, analogue and specialty I/O modules.
• Selectable CC-Link communication speeds up to 10 Mbps.
• Supports up to 64 I/O modules per node.
• Integrated 9-pin D-Sub fieldbus connector.
• DIN rail mounting for industrial control panels.

Technical Specifications

• Manufacturer: WAGO
• Series: I/O System 750 / 753
• Model: 750-310
• Device type: Fieldbus coupler
• Communication protocol: CC-Link
• Baud rates: 156 kbps, 625 kbps, 2.5 Mbps, 5 Mbps, 10 Mbps
• Maximum modules per node: 64
• Transmission medium: Shielded twisted-pair cable
• Fieldbus connection: 9-pin D-Sub connector
• Supply voltage: 24 V DC (−15% to +20%)
• Power jumper contact current: up to 10 A
• Mounting: DIN rail (EN 60715)
• Dimensions: approx. 51 × 65 × 100 mm
• Ingress protection: IP20
• Application: Distributed industrial I/O communication via CC-Link

Industrial Automation Fieldbus Communication

Fieldbus couplers provide the communication interface between distributed I/O modules and central control systems. The WAGO 750-310 enables sensors, actuators and automation equipment connected to WAGO I/O modules to communicate with PLC systems via the CC-Link industrial network.

Within the WAGO I/O System architecture, the coupler automatically creates a process image of all connected modules. Digital signals are transmitted bit-by-bit, while analogue signals are transferred word-by-word, allowing flexible mixed-signal I/O installations within industrial automation environments. :contentReference

Typical Applications

• Distributed PLC I/O systems using CC-Link networks.
• Industrial machine automation.
• Factory automation and production equipment.
• Process monitoring and control systems.
• Integration of sensors, actuators and analogue devices.

Trusted by Automation Engineers

WAGO fieldbus couplers are widely used by automation engineers and machine builders to integrate distributed I/O modules into industrial control networks.
