Wago 750-306/000-006 FC Devicenet,

Why Choose the WAGO 750-306/000-006 DeviceNet Fieldbus Coupler?

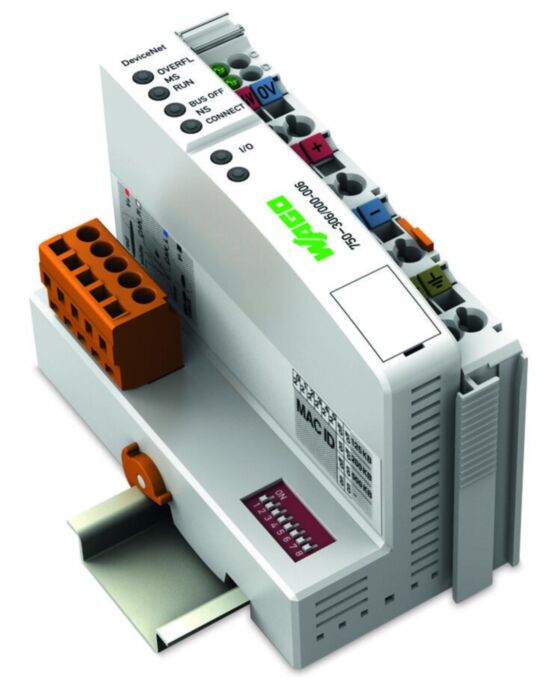

The WAGO 750-306/000-006 is a DeviceNet fieldbus coupler designed to integrate the modular WAGO I/O System 750/753 into DeviceNet industrial networks. Acting as the communication interface between field devices and the control system, the coupler exchanges process data between connected I/O modules and the PLC via the DeviceNet protocol.

The coupler automatically detects all connected digital, analogue and speciality I/O modules and creates a local process image based on the installed module configuration. Digital signals are transferred bit-by-bit while analogue values are transmitted as words or bytes, enabling efficient mixed I/O installations within distributed automation architectures. :contentReference

Designed for scalable industrial automation systems, the coupler can support up to 64 connected I/O modules and thousands of I/O points, allowing machine builders and system integrators to implement flexible distributed control solutions. :contentReference

Key Advantages

• Reliable DeviceNet communication interface for WAGO I/O System 750/753.
• Automatic detection and configuration of connected I/O modules.
• Supports mixed configurations of digital, analogue and speciality modules.
• Scalable architecture supporting up to 64 modules per node.
• Efficient process data exchange between field devices and PLC systems.
• Compact DIN rail design for industrial control cabinets.

Key Features

• DeviceNet fieldbus coupler for distributed I/O systems.
• Automatic generation of a local process image.
• Supports digital and analogue module communication.
• Selectable DeviceNet speeds: 125 kBd, 250 kBd and 500 kBd.
• Supports up to 64 connected I/O modules.
• Integrated 5-pin DeviceNet connector.
• DIN rail mounting for industrial automation cabinets.

Technical Specifications

• Manufacturer: WAGO
• Series: I/O System 750 / 753
• Model: 750-306/000-006
• Device type: Fieldbus coupler
• Communication protocol: DeviceNet
• Baud rates: 125 kBd, 250 kBd, 500 kBd
• Maximum modules per node: 64
• Maximum I/O points: up to approx. 6000
• Process image: up to 512 bytes input / 512 bytes output
• Supply voltage: 24 V DC (−25% to +30%)
• Power jumper contact current: up to 10 A
• Fieldbus connection: DeviceNet 5-pin connector
• Mounting: DIN rail (EN 60715)
• Operating temperature: approx. 0 °C to +55 °C
• Ingress protection: IP20

Industrial Automation Fieldbus Communication

Fieldbus couplers provide the communication link between distributed I/O modules and central control systems. The WAGO 750-306/000-006 enables sensors, actuators and automation equipment connected to WAGO I/O modules to communicate with PLCs through the DeviceNet industrial network.

Within the WAGO I/O System architecture, the coupler automatically manages data exchange for all connected modules. Digital signals are transferred as bits, while analogue values are transmitted as words or bytes within the process image created by the coupler. :contentReference

Typical Applications

• Distributed PLC I/O systems using DeviceNet networks.
• Industrial machine automation.
• Factory automation and production equipment.
• Process monitoring and control systems.
• Integration of sensors, actuators and analogue devices.

Trusted by Automation Engineers

WAGO fieldbus couplers are widely used by automation engineers and machine builders to integrate distributed I/O modules into industrial control networks.
