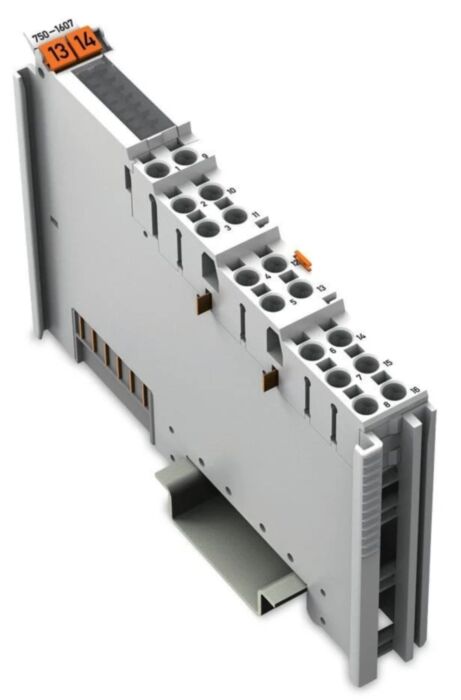

Wago 750-1607 Potential Distribution, 824V/80V

Why Choose the WAGO 750-1607 Potential Distribution Module?

The WAGO 750-1607 is a compact potential distribution module designed for the modular WAGO I/O System 750 and 753. It distributes both 24 V DC supply potential and 0 V reference to multiple field connections, allowing efficient power distribution within industrial automation systems.

The module receives its supply from the internal power jumper contacts of adjacent I/O modules and distributes it to multiple field terminals. This integrated design reduces the need for separate DIN rail terminal blocks, helping simplify control panel wiring and save cabinet space.

By providing eight connections for 24 V DC and eight connections for 0 V reference potential, the 750-1607 enables efficient distribution of field power to sensors, digital inputs and digital outputs within distributed PLC systems. :contentReference

Key Advantages

• Integrated 8-way distribution of 24 V and 0 V potentials.
• Reduces the need for additional DIN rail terminal blocks.
• Designed for seamless integration with WAGO I/O System 750 / 753.
• Automatic power transfer via internal power jumper contacts.
• Compact DIN rail module for efficient control cabinet layouts.
• Simplifies wiring in distributed PLC and automation systems.

Key Features

• 8 × 24 V distribution connections.
• 8 × 0 V reference distribution connections.
• Designed for WAGO I/O System 750 / 753.
• Push-in CAGE CLAMP® terminals for secure field wiring.
• Power supply derived from adjacent I/O modules.
• Compact DIN rail mounting design.
• Supports simplified distributed I/O wiring architectures.

Technical Specifications

• Manufacturer: WAGO
• Series: I/O System 750 / 753
• Model: 750-1607
• Module type: Potential distribution module
• Distribution outputs: 8 × 24 V and 8 × 0 V
• Field supply voltage: 24 V DC (−25 % to +30 %)
• Current capacity (power jumper contacts): up to 10 A
• Connection technology: Push-in CAGE CLAMP®
• Wire cross section: approx. 0.08 → 1.5 mm²
• Mounting: DIN rail (EN 60715)
• Ingress protection: IP20
• Operating temperature: approx. 0 °C to +55 °C
• Application: Potential multiplication and distribution for automation I/O systems

Industrial Automation Power Distribution

Efficient power distribution is essential in distributed automation systems where multiple sensors and actuators require the same supply potential. Potential distribution modules such as the WAGO 750-1607 simplify panel wiring by providing multiple supply points within the modular I/O system.

By distributing both 24 V supply and 0 V reference internally, the module allows engineers to create compact control panels while maintaining reliable power distribution across PLC input and output modules. :contentReference

Typical Applications

• Power distribution for digital input and output modules.
• PLC control cabinets using WAGO I/O System 750 or 753.
• Industrial machine automation systems.
• Distributed I/O installations across production lines.
• Control cabinet wiring for sensors and field devices.

Trusted by Automation Engineers

WAGO I/O System 750 modules are widely used by automation engineers and machine builders to create scalable distributed control systems across modern industrial facilities.
