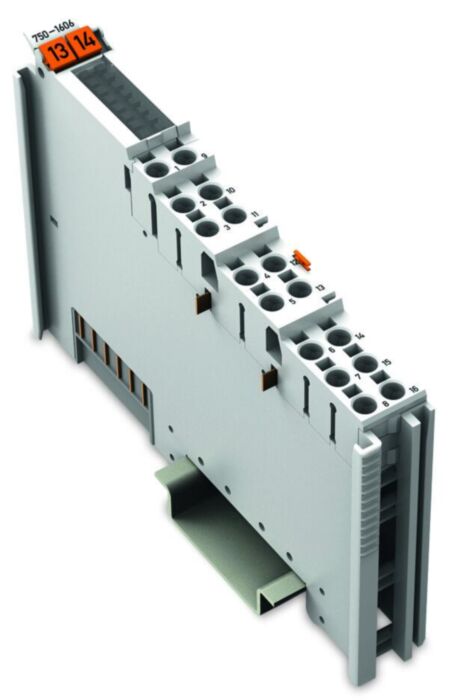

Wago 750-1606 Potential Distribution, 160V

Why Choose the WAGO 750-1606 16-Way Potential Distribution Module?

The WAGO 750-1606 is a 16-way potential distribution module designed for the modular WAGO I/O System 750/753. It distributes the 0 V reference potential to multiple field connections, simplifying wiring for digital output modules and automation devices within industrial control systems.

The module receives its potential via the internal power jumper contacts of neighbouring I/O modules and automatically distributes it across sixteen field terminals. This eliminates the need for additional DIN rail terminal blocks and significantly reduces panel wiring complexity.

Engineered for reliable operation in distributed automation systems, the 750-1606 provides an efficient way to supply common return potential to multiple devices while maintaining the compact modular structure of WAGO’s I/O architecture. :contentReference

Key Advantages

• Efficient 16-way distribution of 0 V potential within automation systems.
• Reduces the need for additional DIN rail terminal blocks.
• Integrates directly with the WAGO I/O System 750/753.
• Automatic potential transfer via internal power jumper contacts.
• Compact DIN rail module for efficient control cabinet layouts.
• Improves wiring organisation and system reliability.

Key Features

• 16 potential distribution connections.
• Distributes 0 V reference potential across multiple terminals.
• Designed for WAGO I/O System 750 and 753.
• CAGE CLAMP® spring pressure terminals for secure wiring.
• Automatic potential transfer through power jumper contacts.
• Compact DIN rail mounting module.
• Suitable for industrial automation control panels.

Technical Specifications

• Manufacturer: WAGO
• Series: I/O System 750 / 753
• Model: 750-1606
• Module type: Potential distribution module
• Distribution channels: 16
• Distributed potential: 0 V reference
• Connection technology: CAGE CLAMP® spring terminals
• Mounting: DIN rail (EN 60715)
• Ingress protection: IP20
• Width: approx. 12 mm
• Operating temperature: approx. 0 °C to +55 °C
• System compatibility: WAGO I/O System 750 and 753
• Application: Potential distribution for digital output modules and field devices

Industrial Automation Potential Distribution

In modern automation systems, common potentials such as 0 V or 24 V must often be distributed to multiple field devices. Potential distribution modules provide a convenient way to replicate supply potentials across several connection points while maintaining the modular structure of distributed I/O systems.

By integrating potential distribution directly within the WAGO I/O stack, engineers can reduce cabinet wiring complexity, shorten installation time and improve maintenance accessibility in industrial control panels. :contentReference

Typical Applications

• Potential distribution for digital output modules.
• Industrial PLC control systems.
• Distributed I/O installations.
• Machine automation panels.
• Power distribution for sensors and field devices.

Trusted by Automation Engineers

WAGO I/O System 750 modules are widely used by machine builders and automation engineers to create reliable distributed automation architectures across industrial facilities.
