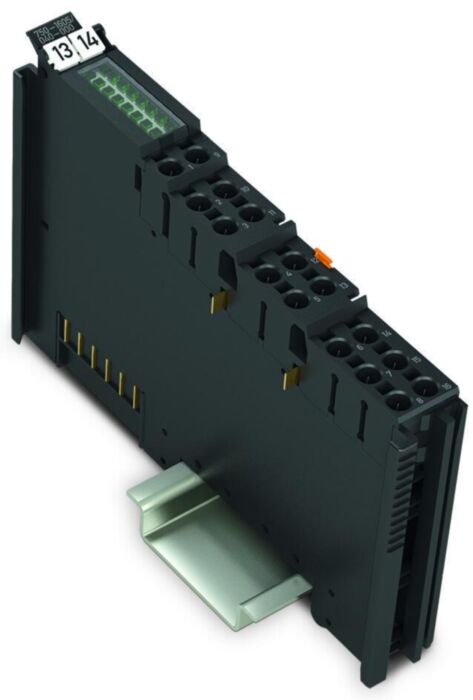

Wago 750-1605/040-000 Potential Distribution, 1624V

Why Choose the WAGO 750-1605/040-000 Potential Distribution Module?

The WAGO 750-1605/040-000 is a 16-way potential distribution module designed for the WAGO I/O System 750 XTR. It distributes 24 V DC field potential across multiple input channels, allowing efficient power distribution to sensors and digital input modules within industrial automation systems.

Instead of using additional DIN rail terminal blocks, the module multiplies the 24 V supply potential internally and distributes it across sixteen field connections. This simplifies wiring layouts and reduces cabinet space requirements in PLC control panels.

The module connects directly to neighbouring WAGO I/O modules via integrated power jumper contacts, automatically passing the supply potential to downstream modules when the system is assembled on the DIN rail. This design helps streamline installation and maintain reliable power distribution throughout the automation system. :contentReference

Key Advantages

• Efficient 16-way distribution of 24 V DC potential.
• Reduces the need for additional DIN rail terminal blocks.
• Designed for the rugged WAGO I/O System 750 XTR.
• Automatic potential transmission through power jumper contacts.
• Compact DIN rail module for efficient control cabinet layouts.
• High reliability in demanding industrial environments.

Key Features

• 16-way potential distribution for 24 V DC systems.
• Designed for use with WAGO I/O System 750 XTR.
• Push-in CAGE CLAMP® terminals for fast wiring.
• Automatic power transmission via internal jumper contacts.
• Compact DIN rail mounted module.
• Designed for distributed automation architectures.
• Suitable for harsh industrial environments.

Technical Specifications

• Manufacturer: WAGO
• Series: I/O System 750 XTR
• Model: 750-1605/040-000
• Module type: Potential distribution module
• Distribution channels: 16
• Nominal voltage: 24 V DC
• Current rating: up to approx. 10 A
• Connection technology: Push-in CAGE CLAMP® terminals
• Wire cross section: approx. 0.25 → 1.5 mm²
• Mounting: DIN rail (EN 60715)
• Ingress protection: IP20
• Operating temperature: approx. −40 °C to +70 °C
• Housing colour: Dark grey
• Application: 24 V potential multiplication and distribution for field devices

Industrial Automation Power Distribution

In distributed automation systems, efficient power distribution is essential for supplying sensors and input modules throughout the control architecture. Potential distribution modules such as the WAGO 750-1605/040-000 simplify wiring by providing multiple 24 V supply points from a single source.

By distributing power directly within the modular I/O system, automation engineers can reduce cabinet wiring complexity and eliminate additional terminal blocks while maintaining reliable power delivery across PLC input modules. :contentReference

Typical Applications

• Power distribution for digital input modules.
• PLC control systems using WAGO I/O System 750.
• Industrial machine automation panels.
• Distributed I/O installations in manufacturing plants.
• Control cabinet power distribution for sensors and field devices.

Trusted by Automation Engineers

WAGO I/O System 750 modules are widely used by machine builders and system integrators to create flexible, reliable distributed automation systems across industrial facilities.
