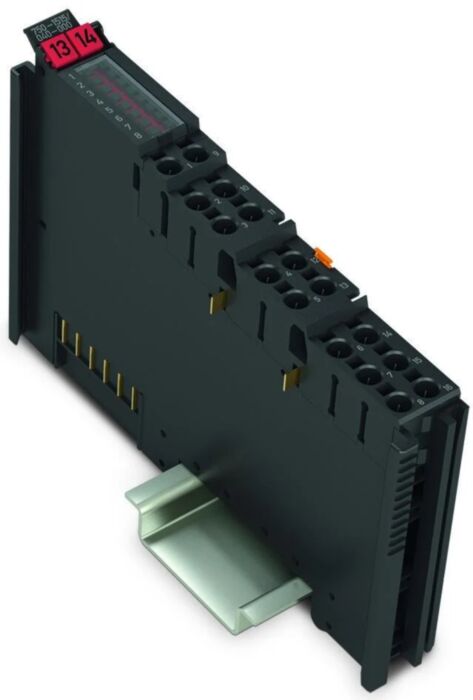

Wago 750-1515/040-000 8Do, 24 Vdc 0.5A 2-Wire Xtr

Why Choose the WAGO 750-1515/040-000 16-Channel Digital Input Module?

The WAGO 750-1515/040-000 is a high-density 16-channel digital input module designed for the modular WAGO I/O System 750. It enables reliable acquisition of 24 V DC digital signals from industrial sensors, switches and control devices within distributed automation architectures.

This module allows sixteen independent digital signals to be processed within a single compact I/O module, helping machine builders and automation engineers reduce cabinet space and simplify wiring in PLC control systems. Integrated LED indicators provide clear channel status information to assist with commissioning and diagnostics.

As part of WAGO’s scalable distributed I/O platform, the 750-1515/040-000 connects directly to compatible WAGO fieldbus couplers and programmable controllers, providing dependable signal communication across modern industrial automation networks.

Key Advantages

• High-density 16-channel digital input acquisition.
• Supports standard 24 V DC industrial sensor signals.
• Designed for the modular WAGO I/O System 750.
• Compact DIN rail module for efficient panel layouts.
• Integrated LED indicators for fast signal diagnostics.
• Reliable communication between field devices and PLC systems.

Key Features

• 16 digital input channels.
• 24 V DC signal input.
• Compatible with WAGO I/O System 750.
• LED status indication for each input channel.
• Designed for distributed industrial I/O architectures.
• DIN rail mounting for industrial control cabinets.
• Reliable acquisition of sensor and switch signals.

Technical Specifications

• Manufacturer: WAGO
• Series: I/O System 750
• Model: 750-1515/040-000
• Module type: Digital input module
• Number of inputs: 16
• Input signal type: 24 V DC digital
• Input current: approx. 3 mA typ.
• Input filter time: approx. 3 ms
• Status indication: LED per channel
• Connection technology: CAGE CLAMP® spring pressure terminals
• Mounting: DIN rail (EN 60715)
• System compatibility: WAGO I/O System 750 fieldbus couplers and controllers
• Operating temperature: approx. −20 °C to +60 °C
• Application: Digital signal acquisition from sensors and switches

Industrial Automation Signal Acquisition

Digital input modules provide the essential interface between field-level devices and PLC control systems. The WAGO 750-1515/040-000 allows industrial sensors, push buttons and signalling devices to communicate status signals to automation controllers within distributed control architectures.

Using distributed I/O systems enables automation engineers to position signal acquisition modules closer to field devices, reducing wiring complexity and improving diagnostics, maintenance and system reliability across industrial installations.

Typical Applications

• Industrial machine automation and PLC control systems.
• Distributed I/O installations across manufacturing facilities.
• Signal acquisition from sensors, switches and push buttons.
• Production line monitoring and automation equipment.
• Building automation and facility management systems.

Trusted by Automation Engineers

WAGO I/O modules are widely used by machine builders and automation engineers to create reliable distributed control systems for industrial automation environments.
