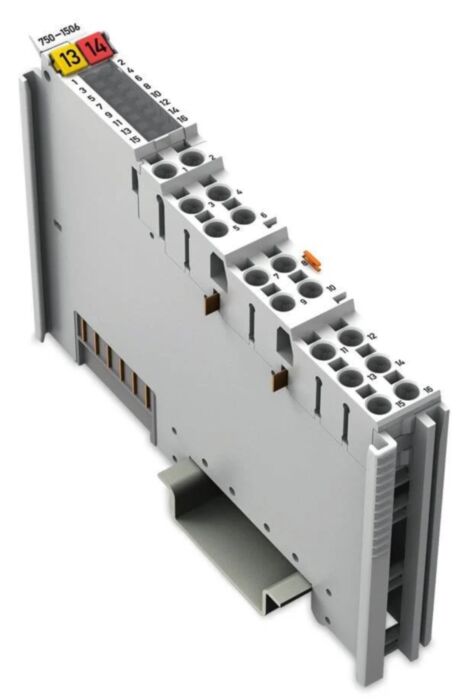

Wago 750-1506 8Dio, 24 Vdc 0.5A

Why Choose the WAGO 750-1506 16-Channel Digital Input Module?

The WAGO 750-1506 is a high-density 16-channel digital input module designed for use with the modular WAGO I/O System 750. It enables efficient acquisition of 24 V DC digital signals from industrial sensors, switches and field devices in distributed automation systems.

With sixteen independent input channels within a single compact module, the 750-1506 allows machine builders and automation engineers to monitor multiple signals while minimising cabinet space and wiring complexity. Integrated LED indicators provide clear visual feedback for each input channel, simplifying commissioning and troubleshooting.

The module connects directly to WAGO fieldbus couplers and programmable controllers, forming part of a scalable distributed I/O architecture widely used in manufacturing automation, process control and building management systems.

Key Advantages

• High-density 16-channel digital input acquisition.
• Designed for the modular WAGO I/O System 750.
• Supports standard 24 V DC industrial sensor signals.
• Space-efficient module for high-density control cabinets.
• Integrated LED indicators for rapid diagnostics.
• Reliable signal transmission between field devices and PLC controllers.

Key Features

• 16 digital input channels.
• 24 V DC input signals.
• Compatible with WAGO I/O System 750.
• LED status indication for each input channel.
• Modular distributed I/O design.
• DIN rail mounting for industrial control panels.
• Designed for industrial sensor and switch connectivity.

Technical Specifications

• Manufacturer: WAGO
• Series: I/O System 750
• Model: 750-1506
• Module type: Digital input module
• Number of inputs: 16
• Input signal type: 24 V DC digital
• Input current: approx. 3 mA typ.
• Input filter time: approx. 3 ms
• Status indication: LED per input channel
• Connection technology: CAGE CLAMP® spring pressure terminals
• Mounting: DIN rail (EN 60715)
• System compatibility: WAGO I/O System 750 fieldbus couplers and controllers
• Operating temperature: approx. −20 °C to +60 °C
• Application: Digital signal acquisition from field devices

Industrial Automation Signal Acquisition

Digital input modules serve as the interface between field-level devices and automation controllers. The WAGO 750-1506 allows sensors, switches and signalling devices to transmit status signals to PLC systems within distributed control architectures.

Using modular I/O systems allows automation engineers to place signal acquisition modules close to field equipment, reducing wiring complexity and improving diagnostics and maintenance efficiency in modern manufacturing environments.

Typical Applications

• Industrial machine automation and control systems.
• PLC input signal acquisition from sensors and switches.
• Distributed I/O installations across manufacturing plants.
• Production line monitoring systems.
• Building automation and facility management systems.

Trusted by Automation Engineers

WAGO I/O modules are widely trusted by system integrators and automation engineers to build scalable distributed control systems for modern industrial facilities.
