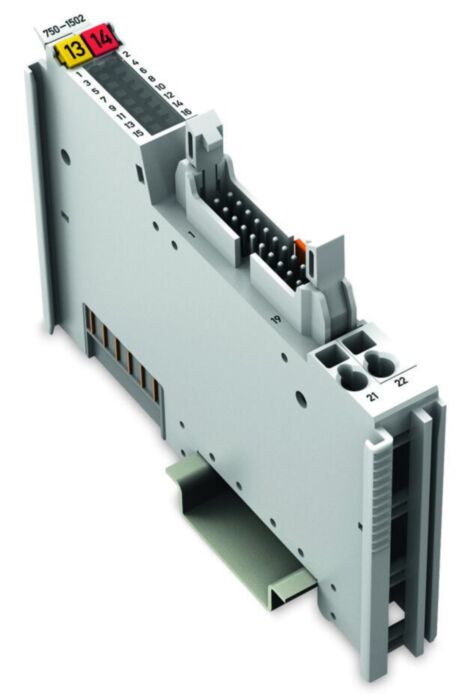

Wago 750-1502 8Dio, 24 Vdc 0.5A Ribbon Cable

Why Choose the WAGO 750-1502 Digital Output Module?

The WAGO 750-1502 is a reliable 2-channel digital output module designed for the modular WAGO I/O SYSTEM 750. It allows industrial automation systems to control actuators, relays, indicator lights and other switching devices by transmitting digital signals from the controller to connected field equipment.

Part of the trusted WAGO automation portfolio, the module communicates with a compatible fieldbus controller and delivers switching signals to connected loads within distributed control systems. Its modular architecture allows engineers to create scalable automation systems by combining multiple digital and analogue I/O modules depending on the application.

The module mounts directly onto the WAGO I/O SYSTEM 750 backplane and installs on a standard 35 mm DIN rail. Its compact design ensures efficient installation inside control cabinets used for machine automation, production systems and building management systems.

Key Advantages

• Controls up to 2 digital output channels for actuators and switching devices.
• Compatible with the modular WAGO I/O SYSTEM 750.
• Compact module design for efficient control cabinet installations.
• Reliable switching for industrial automation applications.
• Simple integration with WAGO fieldbus controllers.
• Scalable architecture for distributed I/O installations.

Key Features

• 2-channel digital output module.
• Compatible with WAGO I/O SYSTEM 750.
• Designed for distributed automation architectures.
• DIN rail mountable modular housing.
• Suitable for controlling relays, actuators and signalling devices.
• Integrated status LEDs for channel diagnostics.
• Expandable system configuration with additional I/O modules.

Technical Specifications

• Manufacturer: WAGO
• Series: I/O SYSTEM 750
• Model: 750-1502
• Product type: Digital output module
• Number of outputs: 2
• Output type: Digital
• System compatibility: WAGO I/O SYSTEM 750
• Mounting: DIN rail 35 mm (EN 60715)
• Status indication: Channel LEDs
• Application: Switching and control of field devices in industrial automation systems

Distributed I/O for Industrial Automation

Distributed I/O modules allow automation controllers to communicate with sensors and actuators located throughout machines or industrial installations. By installing decentralised input and output modules close to field devices, engineers can reduce wiring complexity and improve system flexibility.

The WAGO I/O SYSTEM 750 platform is widely used by machine builders and system integrators because of its modular expandability, compact footprint and reliable communication with industrial fieldbus networks.

Typical Applications

• Industrial automation systems.
• Machine control and manufacturing equipment.
• Actuator and relay control.
• Distributed control system installations.
• Building automation and infrastructure control.

Trusted by Automation Engineers

WAGO distributed I/O modules are widely used by automation engineers and system integrators worldwide for reliable machine control and scalable industrial automation architectures.
