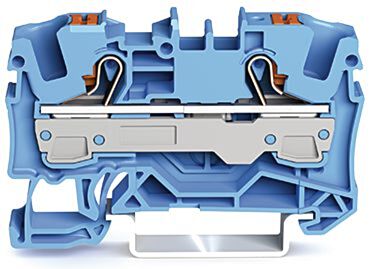

Wago 2216-1204 2-conductor through terminal block with push-button 16 mm sq, blue - Pack of 20

Why Choose the WAGO 2216-1204 TOPJOB S Terminal Block?

The WAGO 2216-1204 is a heavy-duty TOPJOB S feed-through terminal block designed for reliable high-current conductor connections in industrial control panels and electrical distribution systems. Using WAGO’s proven Push-in CAGE CLAMP® spring connection technology, the terminal enables fast, tool-free wiring while ensuring vibration-resistant and gas-tight electrical contacts.

Part of the WAGO 2216 Series TOPJOB S terminal block system, this terminal supports conductor cross-sections up to 16 mm², making it suitable for high-power circuits and industrial electrical distribution applications. Its compact DIN rail mounting design allows organised panel layouts while maintaining dependable power distribution across automation equipment.

The integrated push-button actuation allows easy conductor removal during servicing, while the built-in test port enables convenient electrical measurements during commissioning or troubleshooting. Designed for 35 mm DIN rail mounting, the terminal block offers secure installation for demanding industrial environments.

Key Advantages

• Push-in CAGE CLAMP® technology enables fast, tool-free wiring.
• Supports conductor sizes up to 16 mm² for high-current circuits.
• Push-button actuation simplifies conductor insertion and removal.
• Integrated test port enables convenient electrical diagnostics.
• Compact design suitable for organised DIN rail installations.
• Reliable spring-pressure connections resistant to vibration and shock.

Key Features

• 2-conductor feed-through terminal block.
• Push-in CAGE CLAMP® spring connection.
• Push-button actuation for easy conductor release.
• Nominal conductor cross section: 16 mm².
• Integrated test port for measurement access.
• Side and centre marking compatibility.
• Designed for DIN rail mounting (35 mm).
• Blue housing for circuit identification.

Technical Specifications

• Manufacturer: WAGO
• Series: TOPJOB S 2216 Series
• Model: 2216-1204
• Type: Feed-through terminal block
• Number of connections: 2
• Number of potentials: 1
• Connection technology: Push-in CAGE CLAMP®
• Actuation: Push-button
• Nominal cross section: 16 mm²
• Conductor range: approx. 2.5 – 25 mm²
• Rated voltage: up to 1000 V
• Rated current: up to 76 A
• Terminal width: approx. 12 mm
• Mounting: DIN rail 35 mm (EN 60715)
• Housing material: Polyamide (PA66)
• Colour: Blue
• Application: Industrial control panel wiring and power distribution

Reliable Connections for Industrial Power Distribution

Industrial automation and electrical distribution systems require dependable conductor connections to safely deliver electrical power across equipment and machinery. Feed-through terminal blocks help maintain organised wiring while ensuring reliable electrical performance in control cabinets.

The WAGO TOPJOB S terminal block system provides modular connection solutions widely used in modern automation systems. These terminals are commonly installed alongside components such as industrial signalling and automation devices to create scalable control and power distribution solutions.

Typical Applications

• Industrial control cabinet wiring.
• Machine building and factory automation.
• Electrical power distribution panels.
• PLC and automation system connections.
• Industrial electrical installations.

Trusted by Electrical Engineers

WAGO TOPJOB S terminal blocks are trusted worldwide by panel builders and automation engineers for delivering reliable power connections and organised wiring in industrial control panels.
