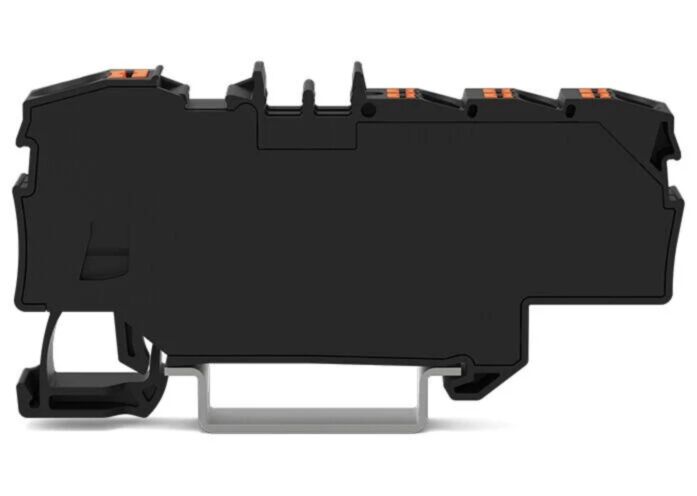

Wago 2206-8035 Distribution terminal block

Why Choose the WAGO 2206-8035 TOPJOB S Distribution Terminal Block?

The WAGO 2206-8035 is a compact TOPJOB S distribution terminal block designed for efficient potential distribution within industrial control panels and electrical installations. It allows a single incoming conductor to distribute electrical potential to multiple outgoing conductors, helping simplify panel wiring and reduce installation complexity.

This terminal uses WAGO’s proven Push-in CAGE CLAMP® spring connection technology, enabling fast, tool-free wiring while maintaining secure, vibration-resistant electrical contacts. The design provides one 6 mm² input connection and six 1.5 mm² output connections, making it ideal for distributing supply, neutral or signal potentials across terminal assemblies. :contentReference

Part of the WAGO 2206 Series TOPJOB S DIN rail terminal system, the 2206-8035 includes an integrated end plate and push-button actuation for convenient conductor release during maintenance. Its durable polyamide housing and compact DIN rail design make it suitable for demanding industrial automation and electrical distribution environments.

Key Advantages

• Efficient potential distribution from one conductor to multiple circuits.
• Push-in CAGE CLAMP® connection technology enables fast tool-free wiring.
• Integrated push-button actuation simplifies conductor release.
• Compact design suitable for high-density control cabinets.
• Integrated end plate improves terminal assembly efficiency.
• Reliable spring-pressure connections resistant to vibration.

Key Features

• Distribution terminal block for potential routing.
• 1 input + 6 output conductor connections.
• Push-in CAGE CLAMP® spring connection.
• Push-button actuation for conductor release.
• Integrated end plate.
• Side and centre marking capability.
• Designed for DIN rail mounting (35 mm).
• Black housing for potential identification.

Technical Specifications

• Manufacturer: WAGO
• Series: TOPJOB S 2206 Series
• Model: 2206-8035
• Type: Distribution terminal block
• Number of connections: 7 (1 input + 6 outputs)
• Connection technology: Push-in CAGE CLAMP®
• Actuation: Push-button
• Nominal cross section (input): 6 mm²
• Nominal cross section (outputs): 1.5 mm²
• Conductor range: approx. 0.5 – 10 mm² (input), 0.25 – 2.5 mm² (outputs)
• Rated voltage: up to 800 V
• Rated current: up to 41 A
• Terminal width: approx. 9 mm
• Mounting: DIN rail 35 mm (EN 60715)
• Housing material: Polyamide (PA66)
• Application: Potential distribution in control panels

Efficient Potential Distribution in Control Cabinets

Distribution terminal blocks simplify electrical installations by allowing a single incoming conductor to distribute electrical potential across multiple circuits. This reduces wiring complexity and helps maintain organised panel layouts in industrial control cabinets.

The WAGO TOPJOB S terminal block system provides modular connectivity solutions widely used in industrial automation and electrical engineering. These terminals are often installed alongside equipment such as industrial signalling and automation devices to create reliable and scalable control systems.

Typical Applications

• Power or neutral potential distribution in control cabinets.
• Industrial automation and PLC wiring.
• Machine building and panel manufacturing.
• Electrical distribution panels.
• Industrial machinery and automation systems.

Trusted by Electrical Engineers

WAGO TOPJOB S distribution terminals are trusted worldwide by panel builders and automation engineers for creating organised, efficient and reliable control cabinet wiring systems.
