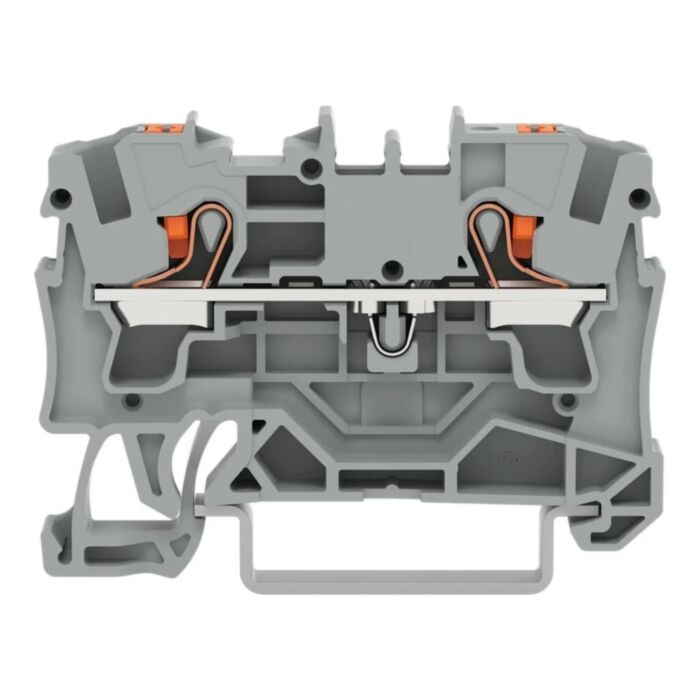

Wago 2204-1201 2-conductor through terminal block with push-button 4 mm sq, gray
MPN: 2204-1201
Alt. SKU: 22041201
Wago 2204-1201 2-conductor through terminal block with push-button 4 mm sq, gray is available to buy in increments of 50
Why Choose the WAGO 2204-1201 TOPJOB S Terminal Block?
The WAGO 2204-1201 is a high-performance TOPJOB S feed-through terminal block designed for secure and efficient conductor connections in industrial control panels and electrical installations. Featuring WAGO’s proven Push-in CAGE CLAMP® spring connection technology, the terminal enables fast, tool-free wiring while delivering reliable vibration-resistant electrical contacts.
Part of the WAGO 2204 Series TOPJOB S rail-mount terminal block system, this terminal block supports conductor cross-sections up to 4 mm² and provides efficient power and signal distribution within control cabinets. Its robust design allows dependable installation in demanding industrial and building automation environments. :contentReference
The integrated push-button actuation simplifies conductor release, while the built-in test port allows convenient electrical testing during commissioning and maintenance. Designed for DIN rail mounting (35 mm), the compact housing allows high wiring density while maintaining accessibility. :contentReference
Key Advantages
- Push-in CAGE CLAMP® technology for fast, tool-free wiring.
- Handles conductors up to 4 mm² for versatile wiring applications.
- Integrated push-button actuation for quick conductor removal.
- Built-in test port simplifies testing and diagnostics.
- Compact design suitable for dense control cabinet layouts.
- Reliable spring-pressure connection resistant to vibration and shock.
Key Features
- 2-conductor feed-through terminal block.
- Push-in CAGE CLAMP® spring connection.
- Push-button actuation for easy wiring.
- Nominal cross section: 4 mm².
- Integrated test port for measurement access.
- Side and centre marking capability.
- Suitable for DIN rail mounting (35 mm).
- Compatible with WAGO TOPJOB S marking and jumper accessories.
Technical Specifications
- Manufacturer: WAGO
- Series: TOPJOB S 2204 Series
- Model: 2204-1201
- Type: Feed-through terminal block
- Number of connections: 2
- Number of potentials: 1
- Connection technology: Push-in CAGE CLAMP®
- Actuation: Push-button
- Nominal cross section: 4 mm²
- Conductor range: approx. 0.5 – 6 mm²
- Rated voltage: up to 800 V
- Rated current: up to 41 A (IEC)
- Terminal width: approx. 6.2 mm
- Mounting: DIN rail 35 mm (EN 60715)
- Housing material: Polyamide (PA66)
- Colour: Grey
- Application: Industrial control panel wiring
Efficient Wiring for Industrial Control Panels
Reliable conductor connection technology is essential for modern automation systems. Feed-through terminal blocks allow panel builders to organise wiring effectively while ensuring secure and durable electrical connections across power and signal circuits.
The WAGO TOPJOB S system provides modular terminal blocks and accessories that simplify panel assembly, maintenance and expansion. These terminals are commonly used alongside devices such as industrial signalling and automation devices to create robust industrial automation systems.
Typical Applications
- Industrial control cabinet wiring.
- Machine building and automation equipment.
- Power and signal distribution within electrical panels.
- PLC and automation system connections.
- Electrical installations in building automation systems.
Frequently Asked Questions
What is the WAGO 2204-1201 terminal block used for?
The 2204-1201 is a feed-through terminal block used to connect conductors securely within industrial control panels and automation systems.
What connection technology does this terminal block use?
It uses WAGO’s Push-in CAGE CLAMP® spring connection technology, enabling tool-free insertion of solid and ferruled conductors.
What conductor sizes are supported?
The terminal supports conductor cross-sections from approximately 0.5 mm² to 6 mm², depending on conductor type.
How is the terminal block mounted?
The device mounts onto a standard 35 mm DIN rail, widely used in electrical control cabinets and automation systems.
What are the advantages of push-in terminal blocks?
Push-in terminals reduce installation time, ensure consistent contact pressure and provide reliable connections even in vibration-prone industrial environments.
Trusted by Electrical Engineers
WAGO TOPJOB S terminal blocks are trusted worldwide by panel builders and automation engineers for delivering compact wiring layouts and reliable electrical connections in demanding industrial environments.
| Manufacturer Part Number | 2204-1201 |
|---|---|
| Height | 330mm |
| Width | 98mm |
| Depth | 48mm |
| Manufacturer | Wago |
| Packed Quantity | 50 |
| HS Code | 85369010 |
| Barcode | 4055143711494 |
| Terminal Type | Through |
| Terminal Size | 4mm |
| Colour | Grey |
| Type of electric connection | Push-in clamp connection |
| Country of Manufacture | Germany |
| Alternative Product SKU | 22041201 |
