Wago 2202-1611/1000-541 5 x 20mm Fuse 2 Conductor Grey 2.5mm Fused Disconnect Terminal - Pack of 50

Why Choose the WAGO 2202-1611/1000-541 Fuse Terminal Block?

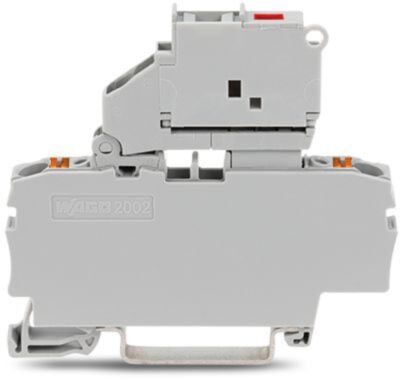

The WAGO 2202-1611/1000-541 is a TOPJOB S 2-conductor fuse terminal block designed to provide integrated circuit protection and reliable wiring within industrial control panels. It combines a compact terminal block with a pivoting fuse holder for 5 × 20 mm miniature fuses, allowing easy fuse replacement and efficient circuit protection for automation and electrical systems.

Part of the advanced WAGO connectivity and terminal block range, this model incorporates Push-in CAGE CLAMP® connection technology for quick and vibration-resistant wiring. The terminal block also features a push-button actuation mechanism and LED blown fuse indication, enabling engineers to quickly identify faults and minimise system downtime.

Designed for installation on standard DIN-rail systems (35 × 7.5 mm or 35 × 15 mm), the unit supports conductors up to 2.5 mm² and provides reliable electrical protection within machine control panels, building automation systems and industrial distribution cabinets. :contentReference

Key Advantages

• Integrated fuse protection for industrial circuits.
• Pivoting fuse holder allows quick fuse replacement.
• LED blown-fuse indication enables rapid fault diagnosis.
• Reliable Push-in CAGE CLAMP® connections for fast installation.
• Compact design suitable for high-density DIN rail assemblies.
• Supports structured wiring in control cabinets and automation systems.

Key Features

• 2-conductor fuse terminal block.
• Pivoting fuse holder for 5 × 20 mm miniature metric fuses.
• Push-button actuation for conductor termination.
• LED blown fuse indicator (12–30 V supply).
• Push-in CAGE CLAMP® connection technology.
• DIN rail mounting for control panels.
• Compact 5.2 mm terminal width for dense installations.
• Compatible with WAGO TOPJOB S terminal block accessories.

Technical Specifications

• Manufacturer: WAGO
• Series: TOPJOB S
• Model: 2202-1611/1000-541
• Product type: Fuse terminal block
• Number of conductors: 2
• Fuse type: 5 × 20 mm miniature fuse
• Fuse holder: Pivoting holder with push-button
• Blown fuse indication: LED, 12–30 V
• Connection technology: Push-in CAGE CLAMP®
• Rated conductor size: up to 2.5 mm²
• Wire range: approx. 0.25 – 4 mm² (12–22 AWG)
• Rated current: up to approx. 6.3 A (IEC)
• Rated voltage: up to 250 V (IEC)
• Terminal width: approx. 5.2 mm
• Mounting: DIN rail 35 × 7.5 mm or 35 × 15 mm
• Housing material: Polyamide (PA66)
• Colour: Grey

Fuse Terminal Blocks for Industrial Circuit Protection

Industrial control panels frequently require individual circuit protection to safeguard sensors, PLC outputs and automation devices. Fuse terminal blocks combine wiring and protection within a single compact module, simplifying panel design while maintaining high levels of electrical safety.

Solutions such as the WAGO 2202-1611/1000-541 integrate fuse protection directly into the terminal assembly, allowing technicians to isolate circuits quickly and replace fuses without disturbing surrounding wiring. This design improves maintenance efficiency and reduces downtime in industrial installations.

Typical Applications

• Industrial control panels and automation cabinets.
• PLC and control circuit protection.
• Machine building and factory automation systems.
• Power distribution and field device protection.
• Building automation and electrical installations.

Trusted by Control Panel Engineers

WAGO TOPJOB S terminal blocks are widely used by machine builders and panel engineers to deliver safe, compact and reliable wiring solutions for modern automation systems.
