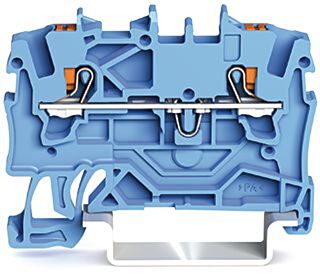

Wago 2201-1204 2-conductor through terminal block with push-button 1.5 mm sq, blue - Pack of 100

Why Choose the WAGO 2201-1204 TOPJOB S Terminal Block?

The WAGO 2201-1204 is a compact TOPJOB S feed-through terminal block designed for reliable conductor connections in industrial control panels and automation systems. Using WAGO’s advanced Push-in CAGE CLAMP® connection technology, this terminal block enables fast, tool-free wiring while ensuring secure and vibration-resistant electrical connections.

Part of the highly efficient WAGO 2201 Series terminal block range, the device provides reliable conductor-to-conductor connections within electrical cabinets and industrial equipment. Its compact 4.2 mm width helps maximise DIN rail space, allowing engineers to build high-density panel layouts without compromising wiring accessibility. :contentReference

The terminal block features a push-button actuation and integrated test port, simplifying installation, testing and maintenance. Its robust insulating housing and secure connection technology ensure long-term performance in demanding industrial environments. :contentReference

Key Advantages

• Push-in CAGE CLAMP® connection for rapid, tool-free wiring.
• Compact 4.2 mm terminal width for high-density installations.
• Integrated push-button actuation for easy conductor release.
• Built-in test port for convenient electrical measurement.
• Secure and vibration-resistant spring pressure connections.
• Compatible with the modular WAGO TOPJOB S terminal block system.

Key Features

• 2-conductor feed-through terminal block.
• Push-in CAGE CLAMP® spring connection.
• Integrated push-button actuation for conductor release.
• Nominal conductor cross section: 1.5 mm².
• 4.2 mm compact housing width.
• Blue terminal block colour for circuit identification.
• Designed for 35 mm DIN rail mounting.
• Side and centre marking compatibility.

Technical Specifications

• Manufacturer: WAGO
• Series: TOPJOB S 2201 Series
• Model: 2201-1204
• Type: Feed-through terminal block
• Number of connections: 2
• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-button
• Conductor cross-section: 0.25 – 2.5 mm² (22–14 AWG)
• Nominal cross section: 1.5 mm²
• Rated voltage: up to 800 V (IEC)
• Rated current: approx. 17.5 – 24 A depending on standard
• Mounting: DIN rail 35 mm (EN 60715)
• Housing material: Polyamide 66 (PA66)
• Terminal width: 4.2 mm
• Application: Control panel wiring and industrial automation

High-Density Control Panel Wiring

Industrial control systems require reliable wiring solutions that support compact layouts and dependable electrical connections. Terminal blocks such as the WAGO TOPJOB S series simplify panel assembly while improving installation efficiency and long-term reliability.

Push-in terminal technology reduces wiring time while ensuring consistent contact pressure and secure connections, even in vibration-prone environments. Industrial systems often integrate components such as industrial signalling and automation devices to build complete control solutions.

Typical Applications

• Control cabinet wiring for industrial automation.
• Machine building and equipment manufacturing.
• PLC and control system connections.
• Power and signal distribution within electrical panels.
• Industrial machinery and production equipment.

Trusted by Electrical Engineers

WAGO TOPJOB S terminal blocks are trusted worldwide by panel builders and automation engineers for their compact design, fast installation and long-term connection reliability.
