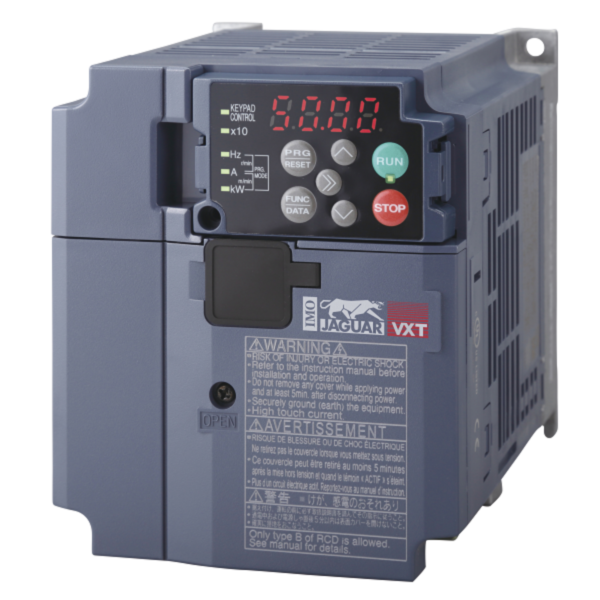

VXT-361A-4E IMO Jaguar Inverter + Filter 200kW, 3Phase, 400v, 361Amp

Why Choose the IMO VXT-361A-4E Variable Speed Drive?

The IMO VXT-361A-4E is a powerful AC variable frequency drive (VFD) from the advanced IMO Jaguar VXT Series, designed for high-demand industrial motor control applications. Built for machine builders, system integrators and industrial automation environments, this drive provides precise speed regulation, reliable torque control and efficient operation for large three-phase motors.

The Jaguar VXT range combines sensorless dynamic torque vector control, built-in communications and integrated safety features to support demanding automation systems. With its multi-duty rating, built-in filter and SIL3 Safe Torque Off functionality, the VXT-361A-4E is well suited to complex machinery, process equipment and heavy-duty industrial installations.

With a rated motor power of 200 kW, a 361 A rated current and a three-phase 380-480 V AC supply, the VXT-361A-4E is ideal for large pumps, fans, compressors, conveyors and production machinery. Its industrial construction and high-power capability make it a dependable choice for continuous operation in demanding control systems.

Key Advantages

• High-power variable frequency drive for industrial motor control.
• 200 kW motor power rating for demanding applications.
• 361 A rated output current for large three-phase motors.
• Three-phase 380-480 V AC input supply.
• Integrated Safe Torque Off (STO) SIL3 safety functionality.
• Built-in filter for improved electrical compatibility.
• Multi-duty rating suitable for a wide range of motor loads.
• Advanced vector control improves torque performance and process stability.

Key Features

• IMO Jaguar VXT Series inverter drive.
• 200 kW rated motor power.
• 361 A rated current.
• 380-480 V AC three-phase input supply.
• Multi-duty rating for normal and heavy-duty applications.
• Integrated Safe Torque Off (STO) functionality.
• Built-in filter included.
• Sensorless dynamic torque vector control.
• RS485 / Modbus RTU and CANopen communications support.
• Integrated PLC functionality for flexible automation control.

Technical Specifications

• Manufacturer: IMO Precision Controls
• Series: Jaguar VXT
• Model: VXT-361A-4E
• Product type: AC variable frequency drive
• Rated motor power: 200 kW
• Rated current: 361 A
• Input voltage: 380-480 V AC
• Input phases: 3-phase
• Frequency: 50 / 60 Hz
• Protection rating: IP00 / IP20 class depending on installation
• Safety rating: SIL3 Safe Torque Off
• Housing type: Metal
• Filter: Included
• Communications: RS485 / Modbus RTU, CANopen

High-Power Motor Control for Industrial Automation

The Jaguar VXT Series is engineered to deliver accurate motor speed control, strong torque response and efficient operation across a wide range of industrial applications. By adjusting motor voltage and frequency, the drive helps reduce energy consumption, improve process control and minimise mechanical stress on driven equipment.

With integrated safety, communication and control features, the VXT-361A-4E can be incorporated into modern automation systems with ease. Its high-power rating makes it particularly suitable for large machinery where dependable performance, flexible control and robust electrical design are essential.

Typical Applications

• Large industrial pumps and pumping stations.
• Fans, blowers and HVAC plant equipment.
• Compressors and process machinery.
• Heavy-duty conveyors and material handling systems.
• Mixers, crushers and production equipment.
• Water treatment and utilities applications.
• Manufacturing and process automation systems.

Trusted by Industrial Automation Professionals

The IMO Jaguar VXT Series is trusted by automation engineers, panel builders and industrial users for reliable high-power motor control, flexible integration and dependable performance in demanding environments.
