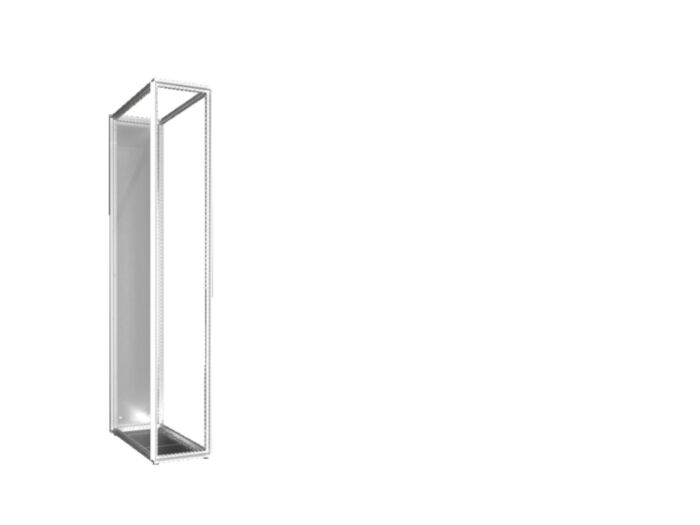

VX9680.428 Rittal 25 Modular enclosure WHD 400x2200x800 mm

Why Choose the Rittal VX9680.428 VX25 Modular Enclosure?

The Rittal VX9680.428 is a high-performance VX25 modular baying enclosure engineered for industrial control panels, automation systems and power distribution installations. As part of the advanced Rittal VX25 enclosure platform, it delivers exceptional structural strength, modular flexibility and efficient system integration for complex engineering environments.

Designed for modular installations with internal separation and partial door systems, this enclosure supports structured layouts and scalable expansion. Its symmetrical frame design simplifies assembly, improves accessibility and enables efficient cable routing for high-density panel builds.

With dimensions of 400 × 2200 × 800 mm (W × H × D) and durable sheet steel construction, the VX9680.428 provides increased internal depth for larger components, enhanced airflow and optimised cable management in demanding industrial applications.

Key Advantages

• Compact VX25 modular enclosure system for flexible installations.
• 400 × 2200 × 800 mm format for deep, high-density panel layouts.
• Designed for internal separation and modular baying systems.
• Durable sheet steel construction for industrial environments.
• Up to IP54 protection depending on configuration.
• Optimised design for efficient component mounting and cable routing.

Key Features

• Rittal VX25 modular enclosure platform.
• Designed for baying systems and scalable expansion.
• Frame suitable for partial doors and internal compartmentalisation.
• Rear panel and gland plates included.
• Dipcoat-primed frame with powder-coated external surfaces.
• Compatible with VX25 accessories and mounting systems.

Technical Specifications

• Manufacturer: Rittal
• Model: VX9680.428
• Series: VX25 Modular Enclosures
• Product type: Floor-standing modular enclosure
• Dimensions (W × H × D): 400 × 2200 × 800 mm
• Material: Sheet steel, 1.5 mm
• Surface finish: Dipcoat-primed frame, powder-coated rear panel
• Colour: RAL 7035
• Protection rating: Up to IP54 (depending on panels)
• Standards: IEC 61439-1 / -2, IEC 61441
• Supply includes: Enclosure frame, rear panel, gland plates
• Weight: approx. 34–35 kg

Optimised for Modular Industrial Systems

The VX25 enclosure system is engineered for modern industrial environments, offering a rigid frame structure and modular expandability. This enables scalable panel systems with internal separation, improving organisation, safety and maintainability across complex installations.

With increased depth and extended height, the VX9680.428 is particularly suited for high-density control panels, large automation systems and power distribution applications requiring structured layouts and efficient use of space.

Typical Applications

• Industrial control panels and switchgear systems.
• Automation and PLC enclosures.
• Power distribution systems.
• Process control and manufacturing equipment.
• Infrastructure and industrial installations.

Trusted by Panel Builders Worldwide

Rittal VX25 modular enclosures are widely trusted for their flexibility, durability and efficient system integration, making them a leading choice for industrial panel builders and automation engineers.
