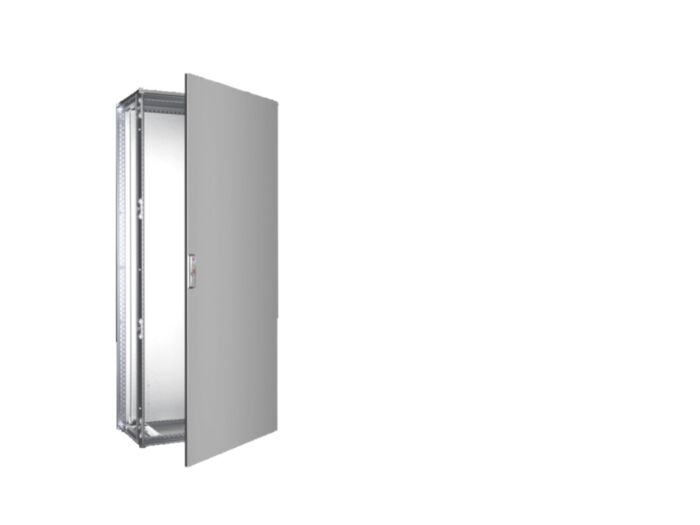

VX8454.000 Rittal Baying enclosure system WHD: 800x1800x400mm single door

Why Choose the Rittal VX8454.000 VX25 Baying Enclosure?

The Rittal VX8454.000 is a high-performance VX25 baying enclosure system designed for industrial control panels, automation systems and power distribution applications. As part of the advanced Rittal VX25 enclosure platform, it provides exceptional structural strength, modular flexibility and efficient installation for modern engineering environments.

Engineered with a symmetrical frame design, this enclosure enables rapid assembly, optimised component installation and seamless system expansion. It is ideal for panel builders requiring a reliable and scalable enclosure solution for complex electrical installations.

With dimensions of 800 × 1800 × 400 mm (W × H × D) and durable sheet steel construction, the VX8454.000 offers a balanced enclosure depth for efficient cable routing and component mounting in industrial environments.

Key Advantages

• Modular VX25 baying enclosure system for scalable installations.
• 800 × 1800 × 400 mm format for versatile panel layouts.
• High-strength sheet steel construction for industrial durability.
• IP55 protection rating against dust and water ingress.
• Optimised internal layout for efficient component mounting.
• Supports seamless expansion through VX25 baying systems.

Key Features

• Rittal VX25 enclosure platform.
• Single front door with reversible hinge.
• Rear panel, roof plate and gland plates included.
• Mounting plate included for fast installation.
• IK10 impact resistance for industrial environments.
• 3 mm double-bit lock for secure access.

Technical Specifications

• Manufacturer: Rittal
• Model: VX8454.000
• Series: VX25 Baying Enclosures
• Product type: Floor-standing industrial enclosure
• Dimensions (W × H × D): 800 × 1800 × 400 mm
• Material: Sheet steel (frame 1.5 mm, door 2.0 mm)
• Surface finish: Powder-coated (RAL 7035)
• Protection rating: IP55
• NEMA rating: NEMA 1 / NEMA 12
• Impact resistance: IK10
• Number of doors: 1
• Mounting plate: Included
• Weight: approx. 95–102 kg

Designed for Industrial Control and Automation

The VX25 enclosure platform is engineered to meet the demands of modern industrial environments, offering a rigid frame structure and modular expandability. Its balanced depth provides sufficient space for component installation while maintaining efficient use of floor space.

Engineers benefit from improved accessibility, structured mounting options and streamlined cable routing, making this enclosure ideal for automation systems, control panels and electrical installations.

Typical Applications

• Industrial control panels and switchgear systems.
• Automation and PLC enclosures.
• Power distribution systems.
• Manufacturing and process control equipment.
• Infrastructure and energy installations.

Trusted by Industrial Engineers Worldwide

Rittal VX25 enclosures are widely trusted for their durability, modular design and installation efficiency, making them a preferred choice for industrial panel builders and automation engineers.
