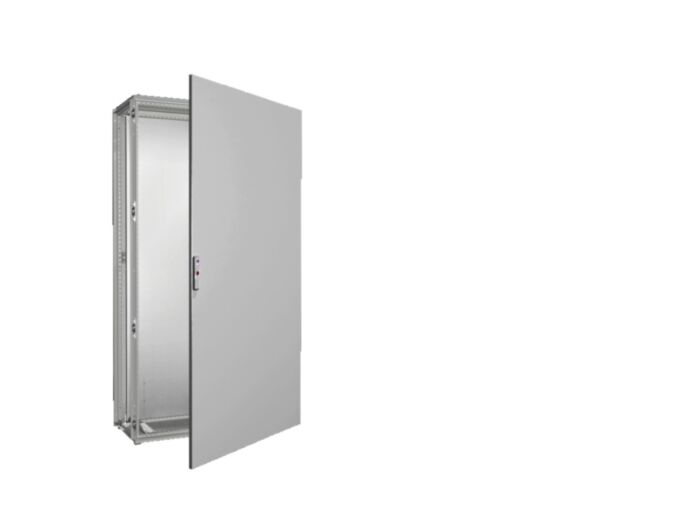

VX8084.000 Rittal Baying enclosure system WHD: 1000x1800x400 mm

Why Choose the Rittal VX8084.000 VX25 Baying Enclosure?

The Rittal VX8084.000 is a high-capacity VX25 baying enclosure system designed for industrial control panels, automation systems and power distribution applications. As part of the advanced Rittal VX25 enclosure platform, it delivers exceptional structural strength, modular flexibility and efficient system integration for demanding engineering environments.

Engineered with a symmetrical frame system, this enclosure allows rapid assembly, consistent mounting geometry and seamless expansion through baying configurations. It is ideal for panel builders requiring scalable, high-performance enclosures for complex installations.

With dimensions of 1000 × 1800 × 400 mm (W × H × D) and durable sheet steel construction, the VX8084.000 provides generous internal width for large component layouts while maintaining a manageable depth for efficient installation.

Key Advantages

• Wide-format VX25 modular enclosure system for large installations.
• 1000 × 1800 × 400 mm design for high-capacity panel layouts.
• Strong sheet steel construction for industrial durability.
• IP55 protection rating for dust and water resistance.
• Optimised internal layout for efficient component mounting and cable routing.
• Supports seamless expansion with VX25 baying systems.

Key Features

• Rittal VX25 enclosure platform.
• Single front door with reversible hinge.
• Rear panel, roof plate and gland plates included.
• 3 mm mounting plate included for fast installation.
• IK10 impact resistance for industrial environments.
• 3 mm double-bit lock for secure access.
• Integrated frame system for modular expansion.

Technical Specifications

• Manufacturer: Rittal
• Model: VX8084.000
• Series: VX25 Baying Enclosures
• Product type: Floor-standing industrial enclosure
• Dimensions (W × H × D): 1000 × 1800 × 400 mm
• Material: Sheet steel (frame 1.5 mm, door 2.0 mm)
• Mounting plate: 3.0 mm zinc-plated steel
• Surface finish: Dipcoat-primed and powder-coated (RAL 7035)
• Protection rating: IP55
• NEMA rating: NEMA 1 / NEMA 12
• Impact resistance: IK10
• Number of doors: 1
• Mounting plate dimensions: approx. 899 × 1696 mm
• Weight: approx. 129 kg

Designed for Large-Scale Panel Installations

The VX25 enclosure system is engineered for modern industrial environments, offering a rigid frame structure and modular expandability. Its increased width provides ample space for complex component arrangements and improved accessibility during installation and maintenance.

With its structured design and integrated mounting system, the VX8084.000 enables efficient panel building, improved cable management and long-term reliability across demanding industrial applications.

Typical Applications

• Large industrial control panels and switchgear systems.
• Automation and PLC enclosures.
• Power distribution systems.
• Manufacturing and process control equipment.
• Infrastructure and energy installations.

Trusted by Industrial Engineers Worldwide

Rittal VX25 enclosures are widely trusted for their durability, modular design and efficient installation, making them a preferred choice for industrial panel builders and automation engineers.
