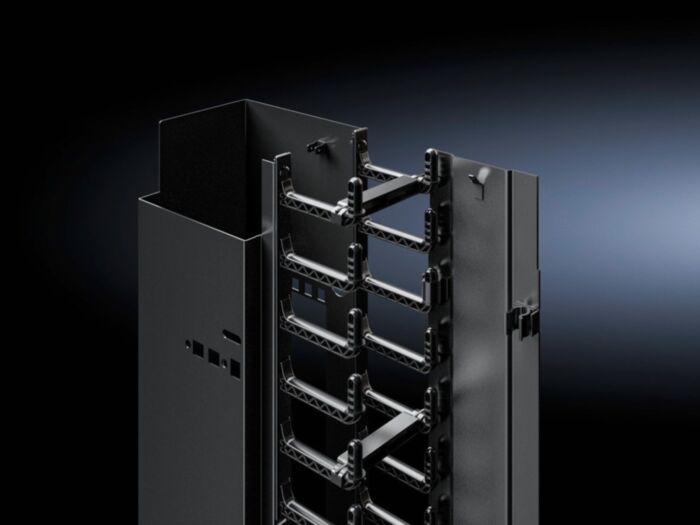

VX5302.053 Rittal Cable duct for VX IT, TE, 47 U, RAL 9005

Why Choose the Rittal VX IT 5302.053 Cable Duct?

The Rittal VX IT 5302.053 is a high-capacity vertical cable duct designed for structured and concealed cable management within VX IT and TX CableNet enclosures. Engineered for high-density IT environments, it enables organised routing of power and data cables while maintaining optimal airflow and accessibility.

This cable duct features hinged, removable covers on both sides, allowing quick and convenient access to installed cabling at any time. It is designed to support efficient cable routing while preventing clutter, making it ideal for modern data centres and enterprise IT installations.

With compatibility for 800 mm wide VX IT enclosures (2200 mm height) and a full 47U capacity, the 5302.053 is suitable for high-density rack configurations where cable organisation and airflow management are critical.

Key Advantages

• Concealed cable routing for clean and organised rack layouts.
• Hinged removable covers for fast and easy cable access.
• High packing density supports large cable volumes.
• Tool-free installation with quick-release fastening system.
• Improves airflow management by reducing air short-circuits.
• Compatible with VX IT systems for seamless integration.

Key Features

• Rittal VX IT cable management accessory.
• 47U vertical cable duct for full-height racks.
• Dual hinged covers with optional removal.
• Cable entry points to enclosure interior and rear panel.
• Snap-in cable retaining bars for secure routing.
• Compatible with brush kits for optimised airflow.
• 1U mounting cut-outs for additional components.

Technical Specifications

• Manufacturer: Rittal
• Series: VX IT / TX CableNet
• Model: 5302.053
• Product type: Vertical cable duct
• Rack capacity: 47U
• Material: Sheet steel, plastic (UL 94-HB)
• Colour: RAL 9005 (black)
• Width: 109.5 mm
• Depth: 314.5 mm
• Length: 2099 mm
• Suitable for enclosure width: 800 mm
• Suitable for enclosure height: 2200 mm
• Mounting: Tool-free quick-release or screw fixing
• Weight: approx. 10.2 kg

Optimised Cable Management and Airflow

Efficient cable routing is essential in high-density IT environments. The VX IT 5302.053 cable duct enables structured cable management while maintaining optimal airflow within the rack, reducing the risk of overheating and improving overall system reliability.

Its design also allows it to function as a partition element, helping to prevent air recirculation in cold aisle containment setups and improving cooling efficiency across the entire installation.

Typical Applications

• Data centre and server rack cable management.
• High-density IT and network installations.
• Structured cabling systems in enterprise environments.
• Industrial IT and automation infrastructure.
• Cold aisle containment and airflow optimisation.
• Telecommunications and network distribution systems.

Trusted by Data Centre Engineers

Rittal cable management solutions are trusted worldwide for delivering organised, efficient and high-performance infrastructure in demanding IT environments.
