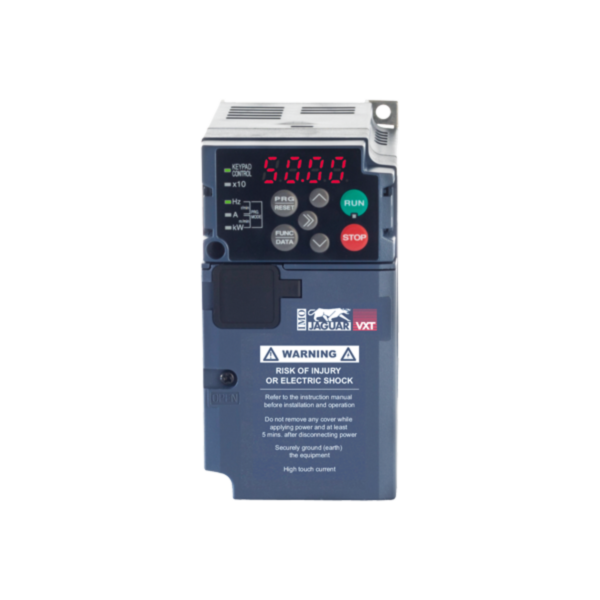

VXT-6A-4 IMO Jaguar Inverter 2.2kW, 3Phase, 400v, 5.5Amp

Why Choose the IMO VXT-6A-4 Variable Speed Drive?

The IMO VXT-6A-4 is a compact and reliable AC variable frequency drive (VFD) from the advanced IMO Jaguar VXT Series, designed to provide precise speed and torque control for three-phase industrial motors. Built for machine builders, panel builders and automation engineers, this inverter delivers dependable motor control, flexible setup and efficient performance in a compact cabinet-mounted format.

The Jaguar VXT range combines advanced motor control, integrated safety functionality and built-in communications to support modern industrial automation systems. With Safe Torque Off capability, multi-duty performance and robust IP20 construction, the VXT-6A-4 is well suited to compact machinery, OEM equipment and general automation applications.

With a rated motor power of 2.2 kW, a 5.5 A rated current and a three-phase 400 V AC supply, the VXT-6A-4 is ideal for conveyors, pumps, fans, mixers and compact production machinery requiring dependable variable speed control. Its multi-duty rating supports 1.5-2.2 kW motor applications.

Key Advantages

• Compact variable frequency drive for industrial motor control.
• 2.2 kW motor power rating suitable for machinery applications.
• 5.5 A rated output current for three-phase AC motors.
• Three-phase 400 V AC input supply.
• Integrated Safe Torque Off (STO) SIL3 safety functionality.
• Multi-duty rating suitable for 1.5-2.2 kW applications.
• Built-in communication capability for automation integration.
• Compact IP20 design for control panel installation.

Key Features

• IMO Jaguar VXT Series inverter drive.
• 2.2 kW rated motor power.
• 5.5 A rated current.
• 400 V AC three-phase input supply.
• Multi-duty rating for 1.5-2.2 kW motor applications.
• Integrated Safe Torque Off (STO) functionality.
• Built-in communication support.
• Sensorless dynamic torque vector control.
• Suitable for standard AC induction motors and PM synchronous motors.
• IP20 protection rating for cabinet installation.

Technical Specifications

• Manufacturer: IMO Precision Controls
• Series: Jaguar VXT
• Model: VXT-6A-4
• Product type: AC variable frequency drive
• Rated motor power: 2.2 kW
• Rated current: 5.5 A
• Input voltage: 400 V AC
• Input phases: 3-phase
• Output phases: 3-phase
• Frequency: 50 / 60 Hz
• Protection rating: IP20
• Safety rating: SIL3 Safe Torque Off
• Filter: Not included
• Built-in communication: Yes
• Housing type: Metal
• Duty range: Multi-duty, 1.5-2.2 kW
• Dimensions (H × W × D): approx. 140 × 110 × 143 mm
• Weight: approx. 1.5 kg

Compact Motor Control for Industrial Automation

The Jaguar VXT Series is engineered to provide accurate motor speed regulation and dependable torque performance across a wide range of industrial applications. By adjusting motor voltage and frequency, the drive helps improve process control, reduce energy consumption and minimise mechanical stress on motors and driven equipment.

The VXT-6A-4 is especially useful for compact machinery and control panels where reliable three-phase variable speed motor control is required. Its compact design, integrated safety functionality and communication capability make it a practical choice for OEM machinery, panel building and small automation systems.

Typical Applications

• Small conveyors and material handling systems.
• Pumps and booster systems.
• Fans and ventilation equipment.
• Packaging and production machinery.
• Mixers and agitators.
• OEM machine building applications.
• Control panels and automation systems.

Trusted by Industrial Automation Professionals

The IMO Jaguar VXT Series is trusted by machine builders, panel builders and automation engineers for dependable motor control, compact installation and flexible integration into industrial systems.
