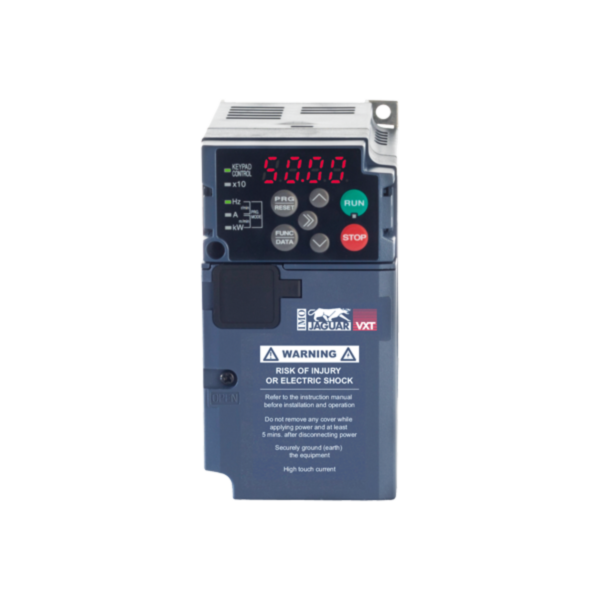

VXT-4A-4 IMO Jaguar Inverter 1.5kW, 3Phase, 400v, 4.1Amp

Why Choose the IMO VXT-4A-4 Variable Speed Drive?

The IMO VXT-4A-4 is a compact and reliable AC variable frequency drive (VFD) from the advanced IMO Jaguar VXT Series, designed to provide precise speed and torque control for three-phase industrial motors. Built for machine builders, panel builders and automation engineers, this inverter delivers dependable motor control, flexible setup and efficient performance in a compact cabinet-mounted format.

The Jaguar VXT range combines advanced motor control, built-in communications and integrated safety functionality to support modern industrial automation systems. With its multi-duty capability and Safe Torque Off safety function, the VXT-4A-4 is well suited to machinery applications requiring reliable variable speed control and straightforward system integration.

With a rated motor power of 1.5 kW, a 4.1 A rated current and a three-phase 400 V AC supply, the VXT-4A-4 is ideal for conveyors, pumps, fans, mixers and compact production machinery. Its IP20 enclosure makes it suitable for installation inside electrical control panels.

Key Advantages

• Compact variable frequency drive for industrial motor control.
• 1.5 kW motor power rating for small machinery applications.
• 4.1 A rated output current for three-phase AC motors.
• Three-phase 400 V AC input supply.
• Integrated Safe Torque Off (STO) SIL3 safety functionality.
• Multi-duty rating suitable for 0.75-1.5 kW applications.
• Built-in communication capability for automation integration.
• Compact IP20 design for control panel installation.

Key Features

• IMO Jaguar VXT Series inverter drive.
• 1.5 kW rated motor power.
• 4.1 A rated current.
• 400 V AC three-phase input supply.
• Multi-duty rating for 0.75-1.5 kW motor applications.
• Integrated Safe Torque Off (STO) functionality.
• Built-in communication support.
• IP20 protection rating.
• Metal housing for industrial cabinet installations.
• Suitable for standard AC induction motors and PM synchronous motors.

Technical Specifications

• Manufacturer: IMO Precision Controls
• Series: Jaguar VXT
• Model: VXT-4A-4
• Product type: AC variable frequency drive
• Rated motor power: 1.5 kW
• Rated current: 4.1 A
• Input voltage: 400 V AC
• Input phases: 3-phase
• Output phases: 3-phase
• Frequency: 50 / 60 Hz
• Protection rating: IP20
• Safety rating: SIL3 Safe Torque Off
• Filter: Not included
• Housing type: Metal
• Mounting type: Cabinet / panel mounting
• Dimensions (H × W × D): approx. 140 × 110 × 143 mm
• Weight: approx. 1.5 kg

Compact Motor Control for Industrial Automation

The Jaguar VXT Series is designed to provide accurate motor speed regulation and responsive torque performance across a wide range of industrial applications. By varying motor voltage and frequency, the drive helps improve process control, reduce energy usage and minimise mechanical stress on motors and driven equipment.

The VXT-4A-4 is especially suitable for control panels and machinery where compact installation, reliable three-phase motor control and integrated safety functionality are required. Its communication capability allows it to be incorporated into automation systems for efficient monitoring and control.

Typical Applications

• Small conveyors and material handling systems.
• Pumps and booster systems.
• Fans and ventilation equipment.
• Packaging and production machinery.
• Mixers and agitators.
• OEM machine building applications.
• Control panels and automation systems.

Trusted by Industrial Automation Professionals

The IMO Jaguar VXT Series is trusted by machine builders, panel builders and automation engineers for dependable motor control, compact installation and flexible integration into industrial systems.
