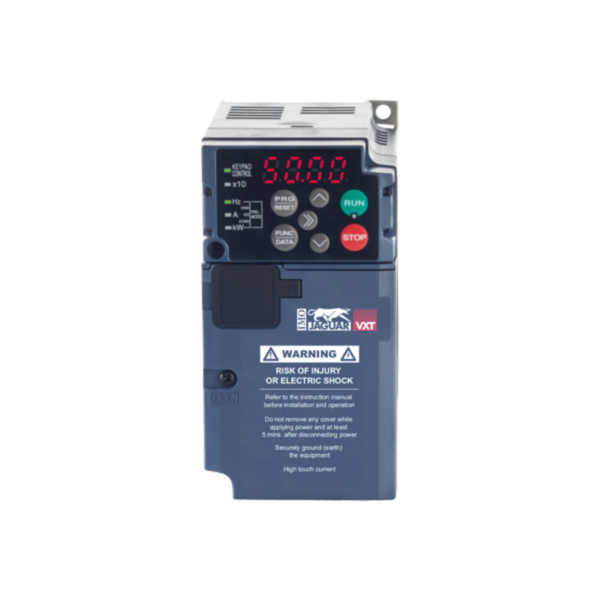

VXT-12A-4 IMO Jaguar Inverter 5.5kW, 3Phase, 400v, 12Amp

Why Choose the IMO VXT-12A-4 Jaguar Variable Speed Drive?

The IMO VXT-12A-4 is a high-performance AC variable speed drive (VSD) from the IMO Jaguar VXT series, designed for precise speed and torque control of three-phase motors in industrial machinery and automation systems. It provides dependable motor control, flexible configuration and robust performance for demanding industrial applications.

The Jaguar VXT range combines advanced sensorless vector control, built-in communication capability and integrated safety functionality, making it suitable for machine builders, control panel manufacturers and automation engineers. Its compact IP20 design allows straightforward installation inside electrical panels and machine cabinets.

With a rated output power of 5.5 kW, 12 A output current and a three-phase 400 V AC input, the VXT-12A-4 is ideal for conveyors, pumps, fans, mixers and production machinery requiring efficient and reliable variable speed motor control.

Key Advantages

• High-performance variable speed drive for industrial applications.
• 5.5 kW motor power rating for demanding machinery.
• Three-phase 400 V AC input supply.
• 12 A rated output current.
• Multi-duty design suitable for 3.7 to 5.5 kW applications.
• Sensorless dynamic torque vector control for accurate motor performance.
• Integrated Safe Torque Off (STO) safety functionality.
• Compact IP20 enclosure for control panel installation.

Key Features

• IMO Jaguar VXT series inverter drive.
• 5.5 kW rated output power.
• 12 A rated output current.
• Three-phase 400 V AC input supply.
• Suitable for multi-duty motor ratings from 3.7 to 5.5 kW.
• Sensorless dynamic torque vector control.
• Integrated Safe Torque Off (STO) safety circuit.
• Built-in communication capability.
• Motor auto-tune capability.
• Internal braking function.
• Metal housing construction.
• Compact panel-mounted IP20 enclosure.

Technical Specifications

• Manufacturer: IMO Precision Controls
• Series: Jaguar VXT
• Model: VXT-12A-4
• Product type: AC variable speed drive
• Rated motor power: 5.5 kW
• Multi-duty power range: 3.7 to 5.5 kW
• Rated output current: 12 A
• Input voltage: 400 V AC
• Input phase: Three phase
• Output phase: Three phase
• Input frequency: 50 / 60 Hz
• EMC filter: Not included
• Housing type: Metal
• Protection rating: IP20
• Control method: Sensorless dynamic torque vector
• Safety: Safe Torque Off (STO)
• Mounting type: Panel / cabinet mounting
• Dimensions (H × W × D): approx. 140 × 141 × 144 mm
• Weight: approx. 1.83 kg

Advanced Motor Control for Industrial Machinery

The IMO VXT-12A-4 regulates motor speed by adjusting output voltage and frequency, allowing machinery to operate more efficiently while improving process control and reducing mechanical stress. Its sensorless vector control helps provide strong torque response without requiring encoder feedback.

With integrated drive safety, communication support and a compact metal IP20 housing, the VXT-12A-4 is a practical solution for OEM machinery, industrial control panels and automation systems requiring reliable three-phase motor control.

Typical Applications

• Industrial conveyors and material handling systems.
• Pumps and fluid handling equipment.
• Fans and ventilation systems.
• Mixers and processing machinery.
• Packaging and production equipment.
• OEM machinery and automation systems.

Trusted by Industrial Automation Engineers Worldwide

IMO Jaguar VXT drives are widely used by machine builders, control panel manufacturers and automation engineers to deliver precise motor control, integrated safety and reliable performance in demanding industrial environments.
