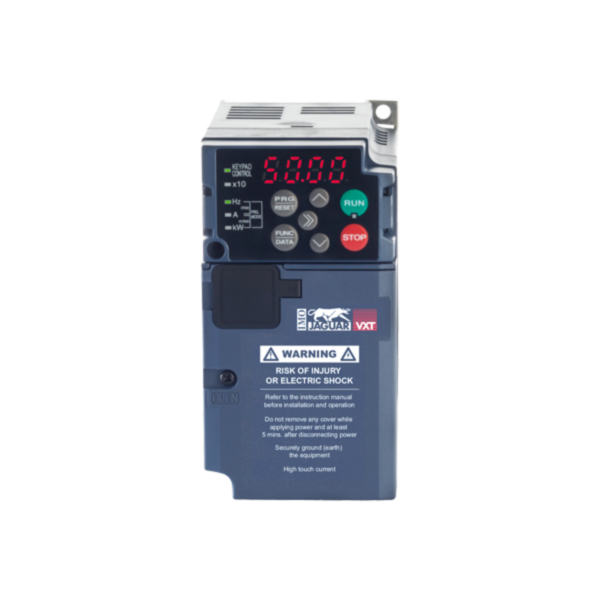

VXT-11A-1 IMO Jaguar Inverter 2.2kW, 1Phase, 200v, 11Amp

Why Choose the IMO VXT-11A-1 Jaguar Variable Speed Drive?

The IMO VXT-11A-1 is a high-performance AC variable speed drive (VSD) from the advanced Jaguar VXT series, designed to provide precise motor speed and torque control for industrial automation and machinery applications. Featuring sensorless vector control technology, integrated safety functions and built-in communications, it delivers exceptional performance while simplifying machine design and commissioning.

Engineered for demanding industrial environments, the VXT-11A-1 offers advanced motor control capabilities including automatic motor tuning, integrated PLC functionality and support for multiple communication protocols. These features allow seamless integration into modern automation systems while helping improve energy efficiency and machine productivity.

With a rated output power of 2.2 kW, a single-phase 200-240 V AC input and an 11 A output rating, the VXT-11A-1 is ideal for conveyors, pumps, fans, mixers and general industrial machinery requiring reliable variable speed motor control.

Key Advantages

• High-performance variable speed drive for industrial applications.
• 2.2 kW motor power rating suitable for demanding machinery.
• Single-phase 200-240 V AC input supply.
• Integrated Safe Torque Off (STO) safety function certified to SIL3.
• Built-in Modbus RTU and CANopen communications.
• Sensorless dynamic torque vector control for accurate motor performance.
• Internal braking chopper for enhanced stopping control.
• Integrated PLC functionality reduces external control requirements.

Key Features

• IMO Jaguar VXT series inverter drive.
• 2.2 kW rated output power.
• 11 A rated output current.
• Single-phase 200-240 V AC input.
• Sensorless dynamic torque vector control.
• Integrated Safe Torque Off (STO) SIL3 safety circuit.
• Built-in Modbus RTU and CANopen communications.
• 200-step integrated PLC functionality.
• Motor auto-tune capability.
• Carrier frequency up to 16 kHz.
• Internal brake chopper.
• Compact panel-mounted IP20 design.

Technical Specifications

• Manufacturer: IMO Precision Controls
• Series: Jaguar VXT
• Model: VXT-11A-1
• Product type: AC variable speed drive
• Rated motor power: 2.2 kW
• Rated output current: 11 A
• Input voltage: 200-240 V AC
• Input phase: Single phase
• Output phase: Three phase
• Input frequency: 50/60 Hz
• Protection rating: IP20
• Control method: Sensorless dynamic torque vector
• Communications: RS485, Modbus RTU, CANopen
• Safety: STO SIL3
• Dimensions (H × W × D): approx. 130 × 140 × 143 mm
• Weight: approx. 1.8 kg

Advanced Motor Control and Connectivity

The Jaguar VXT series combines powerful motor control technology with integrated communications and safety features. Sensorless vector control provides excellent speed regulation and torque performance without requiring encoder feedback, making installation simpler while maintaining high performance.

Built-in Modbus RTU and CANopen communications allow direct integration into industrial automation systems, while the integrated PLC functionality reduces the need for additional control hardware. The result is a flexible and cost-effective drive solution for machine builders and system integrators.

Typical Applications

• Industrial conveyors and material handling systems.
• Pumps and fluid handling equipment.
• Fans and ventilation systems.
• Mixers and processing machinery.
• Packaging and production equipment.
• OEM machinery and automation systems.

Trusted by Industrial Automation Engineers Worldwide

IMO Jaguar VXT drives are widely used by machine builders, control panel manufacturers and automation engineers to deliver precise motor control, integrated safety and reliable performance in demanding industrial environments.
