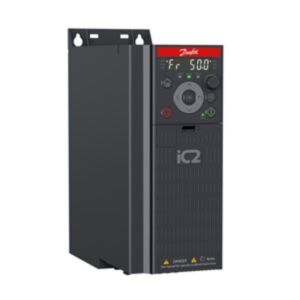

132L6122 Danfoss IC2 Micro Drive 5.5 KW / 7.5 HP 380-480 VAC IP20

Why Choose the Danfoss 132L6122 iC2-Micro Frequency Converter?

The Danfoss 132L6122 is a powerful and compact AC variable frequency drive (VFD) engineered for precise speed and torque control of three-phase motors across industrial automation and HVAC applications. As part of the advanced Danfoss iC2-Micro drive series, it combines dependable motor control, energy efficiency and straightforward commissioning within a space-saving design.

Designed for machine builders, panel manufacturers and industrial engineers, the iC2-Micro series offers reliable operation in demanding environments while simplifying installation and setup. Its compact construction and integrated functionality help reduce panel space requirements without compromising performance.

With a rated output power of 5.5 kW (7.5 HP) and a three-phase 380–480 V AC supply, the Danfoss 132L6122 is ideal for pumps, fans, conveyors, compressors and process machinery. The drive features an integrated brake chopper for applications requiring controlled deceleration and improved braking performance.

Key Advantages

• Compact variable frequency drive for industrial and HVAC applications.
• 5.5 kW (7.5 HP) motor power rating for demanding machinery.
• Three-phase 380–480 V AC input suitable for industrial power networks.
• Integrated brake chopper for controlled motor stopping.
• IP20 open type enclosure for panel-mounted installations.
• Reliable motor control improves energy efficiency and process performance.

Key Features

• Danfoss iC2-Micro drive series.
• 5.5 kW (7.5 HP) rated output power.
• 12.0 A nominal output current.
• Three-phase 380–480 V AC input supply.
• Integrated brake chopper.
• IP20 open type protection rating.
• C4 EMC category for industrial environments.
• Compact MA03a frame design.
• Optimised for industrial automation and HVAC systems.

Technical Specifications

• Manufacturer: Danfoss
• Series: iC2-Micro
• Model: 132L6122
• Product type: AC variable frequency drive
• Alternative model code: IC2-30FA3N04-12A0E20F4+ACBC
• Rated output power: 5.5 kW (7.5 HP)
• Rated output current: 12.0 A
• Input voltage: 380–480 V AC
• Input phases: 3-phase
• Frequency: 50 / 60 Hz
• Protection rating: IP20 / Open type
• EMC category: C4
• Brake chopper: Integrated
• Mounting type: Cabinet / panel mounting
• Frame size: MA03a
• Dimensions (H × W × D): approx. 250 × 90 × 190 mm
• Weight: approx. 3.1 kg

Efficient Motor Control for Industrial Applications

Variable frequency drives such as the Danfoss iC2-Micro regulate motor speed by adjusting output voltage and frequency. This enables improved process control, reduced energy consumption and lower mechanical stress on motors and driven equipment.

The 132L6122 is designed to provide reliable performance across a broad range of industrial and building services applications. Its integrated brake chopper and robust motor control capabilities make it suitable for applications requiring smooth acceleration, accurate speed regulation and controlled stopping.

Typical Applications

• Industrial conveyors and material handling systems.
• Pumps and pressure control systems.
• Fans and ventilation equipment.
• Compressors and air handling units.
• Packaging and processing machinery.
• General industrial automation and OEM machinery.

Trusted by Automation Professionals Worldwide

Danfoss iC2-Micro frequency converters are widely used by engineers, OEMs and system integrators to deliver reliable motor control, efficient operation and seamless integration into industrial and HVAC equipment.
