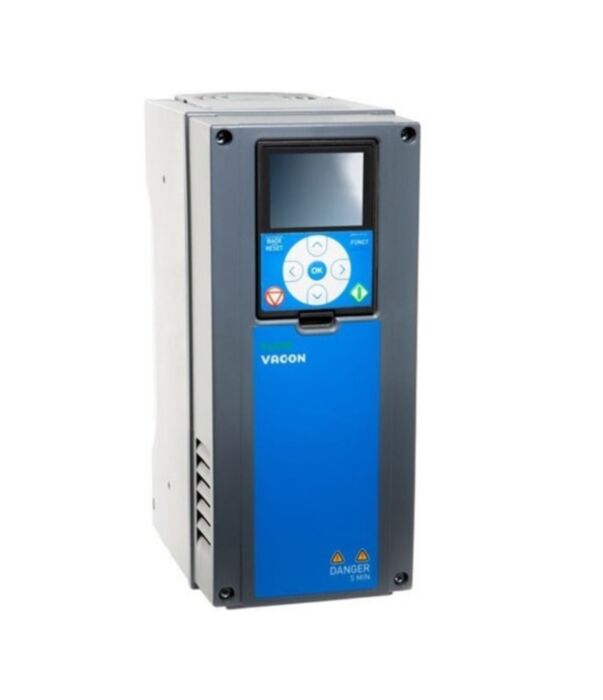

VACON 100 FLOW VACON0100-3L-0140-5-FLOW 75Kw/140Amp 3 PHASE IN/OUT IP21

Why Choose the Danfoss VACON0100-3L-0140-5-FLOW AC Drive?

The Danfoss VACON0100-3L-0140-5-FLOW is a powerful AC variable frequency drive (VFD) designed for efficient pump, fan and flow control applications. As part of the advanced VACON® 100 FLOW series, it provides reliable motor speed control, intelligent application functionality and energy-saving performance for industrial, commercial and infrastructure systems.

This drive is built to optimise flow-based processes by adjusting motor speed to match real-time demand. Integrated pump and fan control features, advanced PID functionality and built-in communication options make it suitable for modern automation systems, building services and water management applications.

With a rated motor power of 75 kW and a three-phase 380–500 V AC supply, the VACON0100-3L-0140-5-FLOW is ideal for larger pumping systems, HVAC installations, wastewater treatment plants and industrial process applications. Its IP21 / NEMA 1 enclosure and graphical keypad support straightforward installation, commissioning and operation.

Key Advantages

• Purpose-built variable frequency drive for pump and fan applications.
• 75 kW motor power rating for demanding flow control systems.
• Three-phase 380–500 V AC input suitable for industrial power supplies.
• 140 A continuous output current for high-capacity motor control.
• Integrated Modbus, N2 and BACnet communication support.
• Graphical keypad for easy configuration, diagnostics and monitoring.
• Energy-efficient operation helps reduce system running costs.

Key Features

• VACON® 100 FLOW drive series.
• 75 kW rated motor power.
• 140 A continuous output current.
• Three-phase 380–500 V AC input supply.
• IP21 / NEMA 1 enclosure.
• Frame size MR08 / Frame 08.
• Integrated DC choke for improved power quality.
• Graphical keypad MK01 for user-friendly operation.
• Built-in standard protocol support including Modbus, N2 and BACnet.

Technical Specifications

• Manufacturer: Danfoss
• Series: VACON® 100 FLOW
• Model: VACON0100-3L-0140-5-FLOW
• Product type: AC variable frequency drive
• Rated motor power: 75 kW
• Motor power: 100 HP
• Continuous output current: 140 A
• Input voltage: 380–500 V AC
• Input phases: 3-phase
• Frequency: 50 / 60 Hz
• Protection rating: IP21 / NEMA 1
• Mounting type: Wall or panel mounting
• Frame size: MR08 / Frame 08
• Dimensions (W × H × D): approx. 290 × 996 × 343 mm
• Net weight: approx. 66 kg

Efficient Motor Control for Flow Applications

The VACON 100 FLOW series is engineered to improve efficiency and reliability in systems where pumps, fans and compressors are central to operation. By varying motor speed according to process demand, the drive reduces energy consumption, lowers mechanical stress and supports smoother system performance.

Dedicated flow control functionality makes the VACON0100-3L-0140-5-FLOW suitable for installations requiring precise pressure, temperature or flow regulation. Its communication options and graphical interface help simplify integration into building management systems, industrial control networks and process automation platforms.

Typical Applications

• Water and wastewater treatment plants.
• Large industrial pumping systems.
• HVAC and building services installations.
• Cooling towers and ventilation systems.
• Irrigation and agricultural pumping systems.
• Industrial process fluid handling.

Trusted by Engineers Worldwide

VACON 100 FLOW drives are widely specified by engineers and system integrators for efficient pump and fan control, dependable performance and reduced energy consumption in demanding flow applications.
