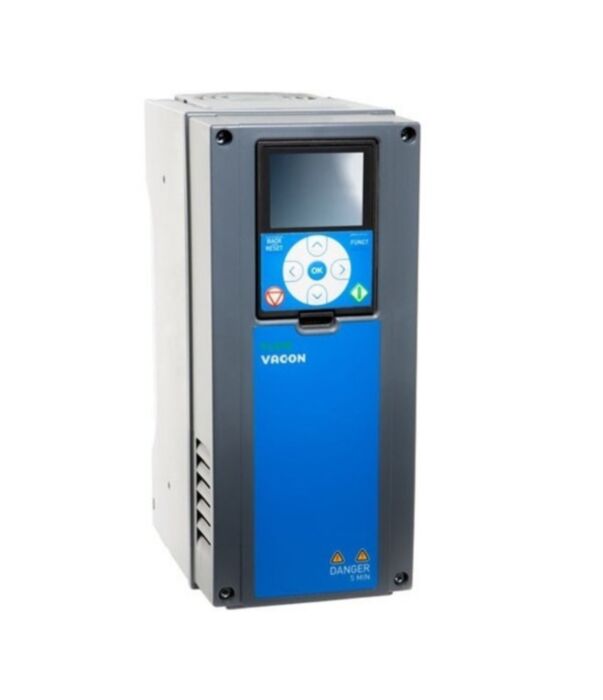

VACON 100 FLOW VACON0100-3L-0105-5-FLOW 55Kw/105Amp 3 PHASE IN/OUTIP21

Why Choose the Danfoss VACON0100-3L-0105-5-FLOW AC Drive?

The Danfoss VACON0100-3L-0105-5-FLOW is a high-performance AC variable frequency drive (VFD) specifically developed for pump, fan and flow control applications. As part of the advanced VACON® 100 FLOW series, this drive combines intelligent motor control, energy-saving functionality and application-specific features to optimise fluid handling processes in industrial and commercial environments.

Engineered for demanding applications, the VACON 100 FLOW range includes dedicated pump and fan control functions, integrated PID control, multi-pump management and comprehensive communication capabilities. These features help improve system efficiency, reduce energy costs and simplify integration with modern building management and automation systems.

With a rated motor power of 55 kW and a three-phase 380–500 V AC supply, the VACON0100-3L-0105-5-FLOW is ideal for medium to large-scale pumping systems, HVAC installations, water treatment facilities and industrial process applications. Its robust construction and advanced control algorithms ensure reliable long-term performance.

Key Advantages

• Purpose-designed variable frequency drive for pumps and fans.
• 55 kW motor power rating for demanding industrial applications.
• Three-phase 380–500 V AC input suitable for industrial power networks.
• Integrated pump and fan application software.
• Advanced PID control and multi-pump functionality.
• Built-in Ethernet and industrial communication support.
• Energy-efficient operation helps reduce running costs.

Key Features

• VACON® 100 FLOW drive series.
• 55 kW rated motor power.
• 105 A continuous output current.
• Three-phase 380–500 V AC input supply.
• Integrated DC choke and braking functionality options.
• Built-in Modbus TCP/IP, BACnet, PROFINET and EtherNet/IP support.
• Graphical keypad for setup and diagnostics.
• Dedicated pump and fan control functions.
• Output frequency range up to 320 Hz.

Technical Specifications

• Manufacturer: Danfoss
• Series: VACON® 100 FLOW
• Model: VACON0100-3L-0105-5-FLOW
• Product type: AC variable frequency drive
• Rated motor power: 55 kW
• Rated output current: 105 A
• Input voltage: 380–500 V AC
• Input phases: 3-phase
• Output frequency: 0–320 Hz
• Protection rating: IP21
• Mounting type: Wall or panel mounting
• Frame size: MR4 / Frame 07
• Dimensions (H × W × D): approx. 700 × 230 × 270 mm
• Weight: approx. 37.5 kg

Advanced Flow Control and Energy Efficiency

The VACON 100 FLOW range has been developed specifically for fluid handling applications where energy efficiency and process reliability are critical. By adjusting motor speed according to demand, the drive reduces energy consumption while maintaining precise system performance.

Integrated application software provides features such as sleep mode operation, dry-run protection, pump staging and automatic alternation. These capabilities make the VACON0100-3L-0105-5-FLOW particularly suitable for water distribution, wastewater treatment, HVAC systems and industrial pumping installations.

Typical Applications

• Water and wastewater treatment plants.
• Industrial pumping stations.
• HVAC and building services systems.
• Cooling towers and ventilation systems.
• Irrigation and agricultural pumping systems.
• Industrial process fluid handling.

Trusted by Engineers Worldwide

VACON 100 FLOW drives are widely specified by engineers and system integrators for efficient pump and fan control, delivering reliable operation, reduced energy consumption and advanced process management.
