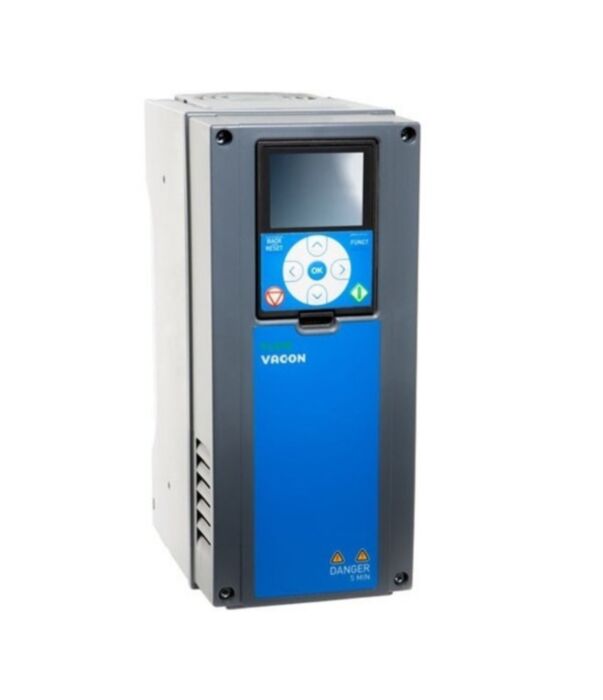

VACON 100 FLOW VACON0100-3L-0087-5-FLOW 45Kw /87Amp 3 PHASE IN/OUT IP21

Why Choose the Danfoss VACON0100-3L-0087-5-FLOW AC Drive?

The Danfoss VACON0100-3L-0087-5-FLOW is a high-performance AC variable frequency drive (VFD) specifically engineered for flow control applications including pumps, fans, compressors and water treatment systems. As part of the proven VACON® 100 FLOW series, this drive delivers advanced motor control, energy efficiency and reliable operation for demanding industrial environments.

Designed to optimise process performance while reducing energy consumption, the VACON 100 FLOW incorporates application-specific functionality for fluid handling systems. Its intuitive graphical keypad, integrated communication protocols and flexible I/O configuration simplify commissioning and integration into modern automation systems.

With a rated motor power of 45 kW and a three-phase 380–500 V AC supply, the VACON0100-3L-0087-5-FLOW is ideal for medium-duty industrial applications requiring accurate speed control and dependable operation. The IP21 enclosure and compact frame design allow straightforward installation within industrial control panels and plant rooms.

Key Advantages

• Purpose-built variable frequency drive for flow control applications.
• 45 kW motor power rating for industrial pumps and fans.
• Three-phase 380–500 V AC input suitable for industrial power systems.
• Integrated application software optimised for HVAC and water systems.
• Built-in Modbus, BACnet and other communication capabilities.
• Energy-efficient motor control reduces operational costs.
• Graphical keypad for easy commissioning and monitoring.

Key Features

• VACON® 100 FLOW drive series.
• 45 kW rated motor power.
• 87 A continuous output current.
• Three-phase 380–500 V AC input supply.
• Integrated DC choke for improved harmonic performance.
• Built-in BACnet, Modbus TCP/IP, EtherNet/IP and PROFINET support.
• Graphical keypad for configuration and diagnostics.
• Dedicated pump and fan control functionality.
• IP21 enclosure suitable for cabinet installation.

Technical Specifications

• Manufacturer: Danfoss
• Series: VACON® 100 FLOW
• Model: VACON0100-3L-0087-5-FLOW
• Product type: AC variable frequency drive
• Rated motor power: 45 kW
• Continuous output current: 87 A
• Input voltage: 380–500 V AC
• Input phases: 3-phase
• Output frequency: 0–320 Hz
• Protection rating: IP21 / NEMA 1
• Mounting type: Wall or panel mounting
• Frame size: MR07 / Frame 07
• Dimensions (H × W × D): approx. 660 × 237 × 259 mm
• Weight: approx. 38 kg

Optimised Control for Pumps and Fans

The VACON 100 FLOW series has been specifically developed for applications where precise control of fluid movement is essential. By continuously adjusting motor speed to match process demand, the drive helps reduce energy consumption, minimise mechanical wear and improve overall system efficiency.

Integrated application functions such as multi-pump control, dry-run protection and advanced PID control make the VACON0100-3L-0087-5-FLOW particularly suitable for water treatment plants, HVAC systems, irrigation systems and industrial pumping installations.

Typical Applications

• Water and wastewater treatment plants.
• HVAC systems and building services.
• Industrial pumping stations.
• Cooling towers and ventilation systems.
• Process industry fluid handling applications.
• Irrigation and agricultural pumping systems.

Trusted by Process and Building Services Engineers Worldwide

VACON 100 FLOW drives are widely used throughout industry to improve energy efficiency, optimise fluid handling processes and provide reliable motor control in critical applications.
