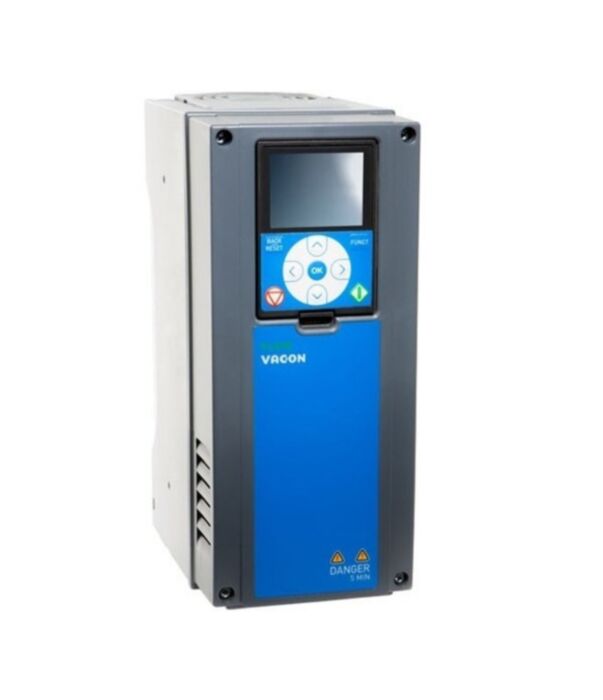

VACON 100 FLOW VACON0100-3L-0072-5-FLOW 37Kw/72Amp 3 PHASE IN/OUT IP21

Why Choose the Vacon 0100-3L-0072-5-FLOW Inverter Drive?

The Vacon 0100-3L-0072-5-FLOW is a high-performance Vacon 100 FLOW AC variable frequency drive engineered specifically for pumps, fans and flow-control applications in HVAC systems, building services, water treatment facilities and industrial process environments. The FLOW range combines advanced motor control with dedicated application functions that simplify commissioning and maximise energy efficiency.

With a rated motor power of 37 kW, a rated output current of 72 A and operation from a three-phase 380-500 V AC supply, this drive provides reliable speed control for demanding pump and fan applications while helping reduce energy consumption and operating costs.

The Vacon 100 FLOW range incorporates multipump control, integrated Ethernet communications, application-specific setup menus and advanced PID control, making it ideal for intelligent flow-management systems.

Key Advantages

• Purpose-built FLOW inverter drive for pumps and fans.
• 37 kW motor power rating.
• 72 A rated output current.
• Three-phase 380-500 V AC input.
• IP21 / NEMA 1 enclosure.
• Graphical keypad with commissioning wizards.
• C2 EMC compliance for commercial and industrial environments.
• Advanced PID and multipump control functionality.
• Integrated Ethernet and RS485 communications.

Key Features

• Vacon 100 FLOW series.
• 37 kW rated motor power.
• 72 A continuous output current.
• 380-500 V AC three-phase input.
• Three-phase motor output.
• IP21 / UL Type 1 / NEMA 1 enclosure.
• Graphical multilingual keypad.
• C2 EMC filter.
• Integrated PID controller.
• Multipump, Multimaster and Multifollower control.
• Control capability for up to 8 pumps.
• Built-in Ethernet and RS485 communications.
• Modbus TCP/IP, BACnet IP, Modbus RTU and BACnet MSTP support.
• Integrated Safe Torque Off (STO).
• MR07 frame size.

Technical Specifications

• Manufacturer: Danfoss / Vacon
• Series: Vacon 100 FLOW
• Model: VACON0100-3L-0072-5-FLOW
• Product type: AC variable frequency drive
• Rated output power: 37 kW
• Rated output current: 72 A (Normal Duty)
• Heavy duty output current: 61 A
• Input voltage: 380-500 V AC
• Input phases: 3-phase
• Output phases: 3-phase
• Output frequency: 0-320 Hz
• Protection rating: IP21 / UL Type 1 / NEMA 1
• EMC level: C2 commercial and industrial environment
• Keypad: Graphical keypad
• Frame size: MR07
• Dimensions (W × H × D): 237 × 660 × 259 mm
• Net weight: 37.5 kg
• Communications: Modbus TCP/IP, BACnet IP, Modbus RTU, BACnet MSTP
• Application type: Pumps, fans, HVAC and flow control

Optimised for Pump and Fan Applications

Unlike general-purpose drives, the Vacon 100 FLOW range is specifically designed to improve flow control and reduce energy consumption in pump and fan systems. Features such as multipump control, dedicated application menus and intelligent PID regulation help maximise efficiency while protecting connected equipment.

Built-in Ethernet and RS485 communications allow straightforward integration into building management systems and industrial automation networks, helping engineers achieve greater visibility and control of critical processes.

Typical Applications

• HVAC fan systems.
• Booster pump stations.
• Water treatment facilities.
• Wastewater processing plants.
• Building management systems.
• Cooling tower fans.
• Industrial pumping systems.
• Process flow control applications.
• Compressor systems.

Trusted by HVAC and Water Industry Professionals

Vacon 100 FLOW drives are widely used by HVAC engineers, system integrators, water treatment specialists and industrial automation professionals who require dependable pump and fan control with advanced energy-saving functionality.
