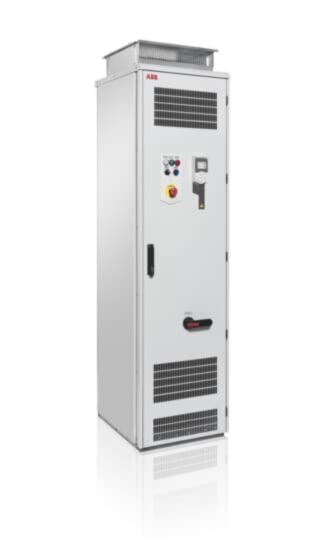

ACS580-07-0145A-4 ABB 75kW Three Phase ABB ACS580 Variable Speed Drive
MPN: ACS580-07-0145A-4
Alt. SKU: 3AXD50000041421
Why Choose the ACS580-07-0145A-4 [3AXD50000041421]
The ACS580-07 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant. The ready-made standalone cabinet-built ACS580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
Technical Specification
- Function: Variable speed drive for compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans.
- Input Voltage: 380–480 V, 3-phase.
- Output Current (Normal Use): 145 A.
- Output Power (Normal Use): 75 kW.
- Degree of Protection: IP21 (standard), also available in IP42 and IP54.
- Mounting Type: Cabinet-built.
- Operating Temperature Range: 0 °C to 40 °C.
- Communication Protocols: CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, TCP/IP.
- Control Inputs/Outputs: 2 analogue inputs, 2 analogue outputs, 6 digital inputs, 3 digital outputs.
- Enclosure Type: NEMA Type 1.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What applications can the ACS580-07 drive control?
The ACS580-07 is designed for variable speed control of compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans in various light industries.
What is the input voltage range for the ACS580-07?
The input voltage range for the ACS580-07 is 380–480 V, 3-phase.
What is the maximum output current and power of the ACS580-07?
The ACS580-07 has a maximum output current of 145 A and an output power of 75 kW under normal use.
What are the available degrees of protection for the ACS580-07?
The ACS580-07 comes with an IP21 degree of protection as standard, with options for IP42 and IP54 available.
What communication protocols are supported by the ACS580-07?
The ACS580-07 supports CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, and TCP/IP communication protocols.
What is the operating temperature range for the ACS580-07?
The operating temperature range for the ACS580-07 is 0 °C to 40 °C.
What type of mounting does the ACS580-07 use?
The ACS580-07 is designed for cabinet-built mounting.
| Manufacturer Part Number | ACS580-07-0145A-4 |
|---|---|
| Packed Quantity | 1 |
| Height | 2145mm |
| Width | 430mm |
| Depth | 673mm |
| Amperage | 145A |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Control Setting | CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, TCP/IP |
| Number of digital inputs | 6 |
| Number of digital outputs | 3 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP21 |
| KW Rating | 75kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces parallel | 2 |
| Number of HW-interfaces other | 2 |
| Output Frequency | 500Hz |
| Output Voltage | 480VAC |
| Output Phases | Three phase |
| Type of Converter | U converter |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 380/480VAC |
| VSD Range | ABB ACS580 |
| Manufacturer | ABB |
| Country of Manufacture | Estonia |
| Alternative Product SKU | 3AXD50000041421 |
