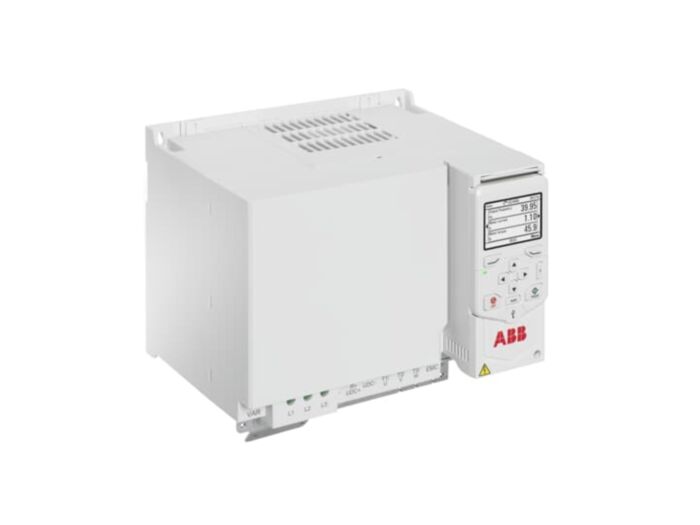

ACH480-04-050A-4 ABB 22kW Three Phase ABB ACH480 Variable Speed Drive
MPN: ACH480-04-050A-4
Alt. SKU: 3AXD50000275755
Special Price
£2,882.10
£2,401.75
Regular Price
£4,434.00
Why Choose the ACH480-04-050A-4 [3AXD50000275755]
The cabinet-optimized ACH480 drive has complete HVAC functionality to control fans, pumps, compressors, and more complex HVAC equipment like air-handling units, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The ACH480 is especially a good fit for panel builders and OEMs.
Technical Specification
- Function: HVAC drive for fans, pumps, compressors, and air-handling units with energy-efficient operation.
- Input Voltage: 380–480 V, 3-phase.
- Output Current (Normal Use): 50 A.
- Output Power (Normal Use): 22 kW.
- Degree of Protection: IP20.
- Mounting Type: Module for cabinet installation.
- Communication Protocols: BACnet, CAN, DeviceNet, EtherNet/IP, LON, MODBUS, PROFIBUS, PROFINET IO, TCP/IP.
- Control Connections: 2 analogue inputs, 2 analogue outputs, 6 digital inputs, 3 digital outputs.
- Operating Temperature: Maximum 50 °C.
- Weight: 5.6 kg (12.3 lb).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the ACH480 drive?
The ACH480 drive is designed for HVAC applications, controlling fans, pumps, compressors, and air-handling units for energy-efficient operation.
What is the input voltage range for the ACH480?
The input voltage range for the ACH480 is 380–480 V, 3-phase.
What is the output current rating for normal use?
The output current rating for normal use is 50 A.
What mounting type is required for the ACH480?
The ACH480 is designed for cabinet installation as a module.
What communication protocols are supported by the ACH480?
The ACH480 supports BACnet, CAN, DeviceNet, EtherNet/IP, LON, MODBUS, PROFIBUS, PROFINET IO, and TCP/IP protocols.
What is the maximum operating temperature for the ACH480?
The maximum operating temperature for the ACH480 is 50 °C.
What should I refer to for standards and approvals of the ACH480?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | ACH480-04-050A-4 |
|---|---|
| Barcode | 6438177541851 |
| Packed Quantity | 1 |
| Height | 240mm |
| Width | 262mm |
| Depth | 213mm |
| HS Code | 85044086 |
| Amperage | 50A |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Control Setting | BACnet, CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, LON, Modbus, PROFIBUS, PROFINET IO, TCP/IP |
| Number of digital inputs | 6 |
| Number of digital outputs | 3 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP20 |
| KW Rating | 22kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces other | 2 |
| Output Frequency | 599Hz |
| Output Voltage | 480VAC |
| Output Phases | Three phase |
| Type of Converter | U converter |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 380/480VAC |
| VSD Range | ABB ACH480 |
| Manufacturer | ABB |
| Country of Manufacture | Finland |
| Alternative Product SKU | 3AXD50000275755 |
